F-52 FCC Current Probe

Product Description:

Model F-52 current probe is produced by the United States Fischer Custom Communications, Inc. (FCC) company and authorized by the Shenzhen EUTTEST agent sales of one of the products, the probe's available frequency range of 10kHz - 500MHz. in the DC 400Hz frequency can be measured by the object EUT RF current range of 50 amperes continuous wave current and 100 amperes peak pulse current, if the EUT maximum mains power line current duty cycle of 0.1. - 400Hz frequency can be passed through the DUT EUT's RF current ranges from 50 amps continuous wave current and 100 amps peak pulse current to 350 amps if the EUT's maximum mains power line current has a duty cycle of 0.1.

2025 Update: The F-52 has been discontinued, please purchase the newly introduced F-52B FCC Current Probe!

Technical parameters：

Product Specification Sheet:

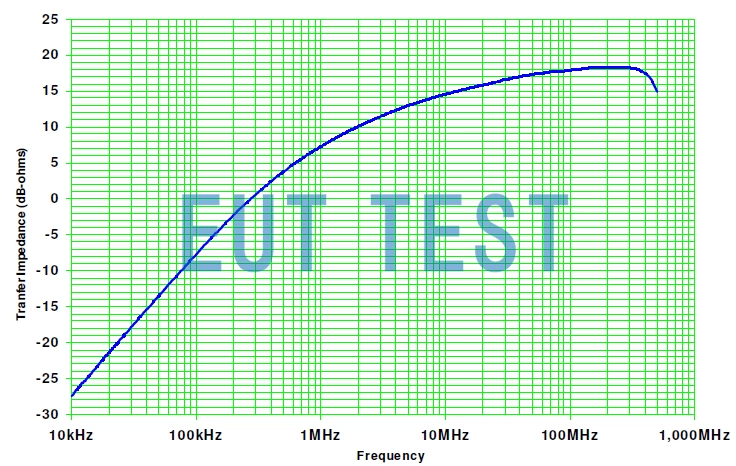

Transfer impedance graph

Transfer Impedance Curve for F-52 FCC Current Probes

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
