FDAI155 155MHz Folded Dipole Antenna

Product Description:

The FDAI155 is a folded dipole antenna manufactured by schwarzbeck in Germany.NMHB 4MMAn antenna included in the kit, this antenna can be used for hand-held transmitter immunity testing requirements of ISO 11452-9 Appendix C.5, generating either electric or magnetic field radiation, and covering the test frequency range of 151 MHz to 160 MHz.

Technical parameters：

Product Specification Sheet:

Technical parameter graphs:

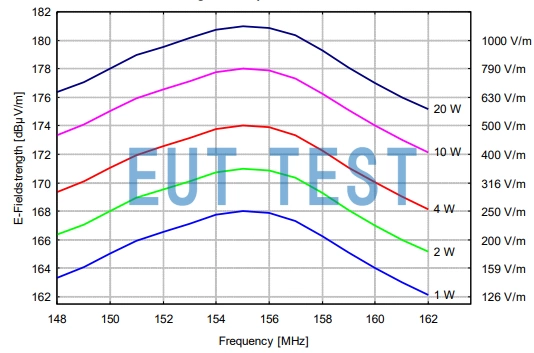

Input power versus maximum electric field strength for FDAI155

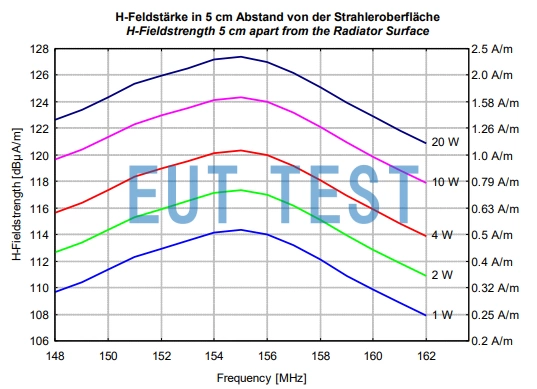

Input Power vs. Maximum Magnetic Field Strength for FDAI155

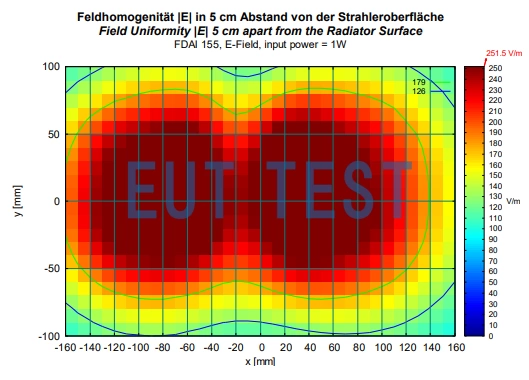

FDAI155 Electric field strength distribution at 1W power input

Order No. EUTS0714

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
