FMZB 1519 B Schwarzbeck Active Ring Antenna

Introduction：

The FMZB 1519 B is an active, shielded, hand-held loop antenna manufactured by Schwarzbeck, Germany and distributed by EUTTEST. The antenna has an almost constant antenna coefficient over the entire frequency range of 9 kHz - 30 MHz, and the antenna uses a battery to drive the preamplifier for normal operation in order to minimize the effects of interference from the power line.

Applications:

This loop antenna is particularly suitable for mobile applications, e.g. if used with a hand-held spectrum analyzer or in combination with a CISPR 16-1-1 EMI receiver to form a magnetic field strength measurement system with low noise and impulse measurement capability. It also has a shielded aluminum housing with rubber feet for tabletop operation, or can be mounted using the female camera threads (1/4" and 3/8") on the bottom.derrick craneUp.

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

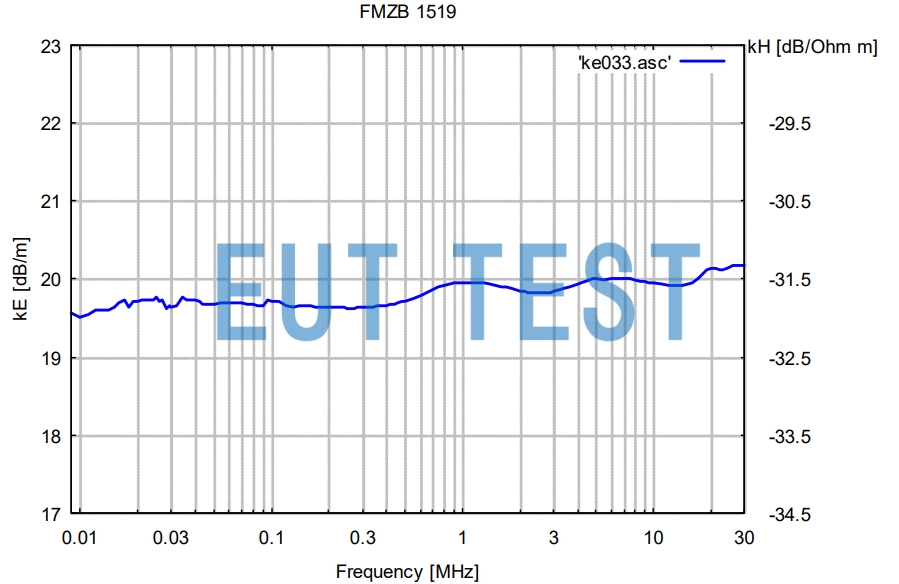

Frequency Response Graph

Order No. EUTS0410

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
