FMZB 1519 C schwarzbeck active loop antenna for magnetic field reception

Introduction：

The FMZB 1519 C is an active magnetic field receiving loop antenna developed and manufactured by Schwarzbeck, Germany. The 50cm diameter antenna is manufactured in accordance with CISPR 16-1-4 and ANSI C 63.10 standards, and is available in the frequency range of 9 kHz to 30 MHz. When the input signal is close to or exceeds the 1dB compression point of the loop antenna, the overload indicator on the front of the antenna will be activated and the test engineer can remotely view the status of the indicator and make a decision to terminate the test. When the input signal approaches or exceeds the 1 dB compression point, an overload indicator on the front of the antenna is activated, allowing the test engineer to remotely view the status of the indicator and make a decision on test termination.

Test application:

This loop antenna can be connectedCISPR16 compliant EMI receiversThe loop antenna is a low-noise field strength measurement system capable of measuring pulsed signals. The loop antenna is constructed using a rugged aluminum alloy housing with 1/4 threads on the bottom, allowing the antenna to be mounted on an antenna tripod. AM9144 or on a hand-held handle option.

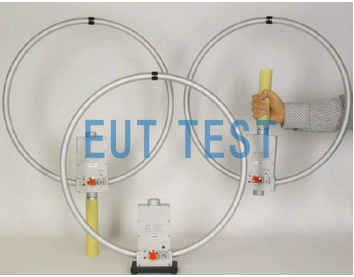

Can be mounted on the handle for testing

This loop antenna is manufactured by Schwarzbeck - Mess-Elektronik and represented by EUTTEST Shenzhen for sales and after-sales service, so we also offer options such as adapters for customizing this antenna for mounting on a tripod.

Configured with 10 alkaline nickel-metal hydride (NiMH-Mignon) rechargeable batteries, this ring antenna FMZB1519C can be used for frequency-selective measurements of magnetic fields (virtual electric fields) in the longwave, mediumwave, and shortwave frequency ranges, and for testing in accordance with CISPR (e.g., CISPR 16-1-4), MIL, FCC, EN, ISO, ANSI, ETSI, and many other standards. many other standards.

Note on selection and matching:

This ring antenna replaces the discontinued FMZB 1513 B The

When testing the CISPR32 standard, the antenna diameter of 50cm can not meet the standard test requirements, you need to configure a special 60cm antenna diameter, please purchase:

• FMZB 1519-60 C
• FMZB 1519-60 D

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

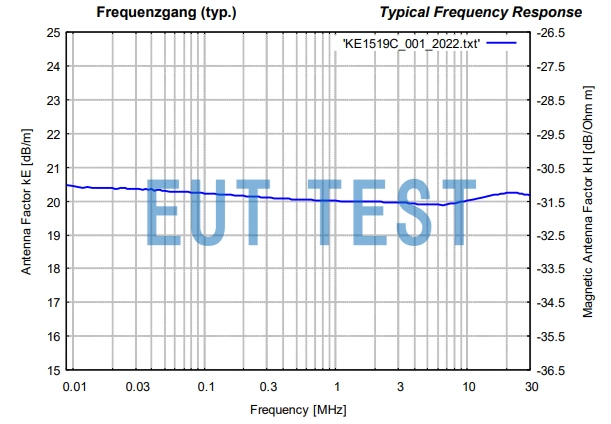

Antenna Coefficient Graph

Order No. EUTS0409
