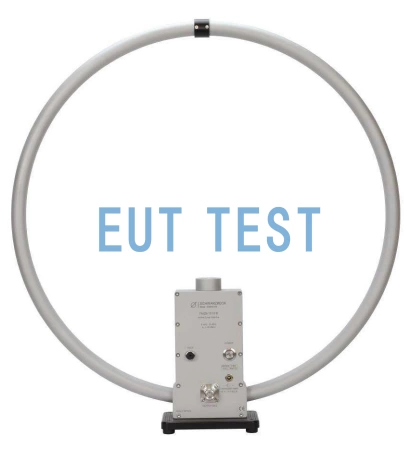

FMZB 1513 B Schwarzbeck Active ring antenna 50cm diameter

Introduction：

FMZB 1513 B is an active magnetic field receiving loop antenna produced by Schwarzbeck, Germany and authorized by Shenzhen EUTTEST agent for sale, the antenna can be used for EMI testing from 9 kHz - 30 MHz, but also configured with a 12V/1.9AH rechargeable battery, the use of battery power can be used to external power cord on the test results of interference. The antenna is also equipped with a 12V/1.9AH rechargeable battery. The antenna also features a shielded aluminum housing with rubber feet for tabletop placement or can be mounted on a tripod using the female camera threads (1/4″ and 3/8*) on the bottom. AM9144 Up.

The active loop antenna FMZB1513B is particularly suitable for mobile applications, e.g. if used with a handheld spectrum analyzer, this loop antenna in combination with a CISPR 16-1-1 EMI receiver can be used to set up an on-site magnetic field strength measurement system with low noise and impulse measurement capabilities.

The diameter of this loop antenna is 50cm, if you need 60cm diameter loop antenna, please purchase the following antenna products:

• FMZB 1513-60 B
• FMZB 1519-60 C
• FMZB 1519-60 D

Technical parameters：

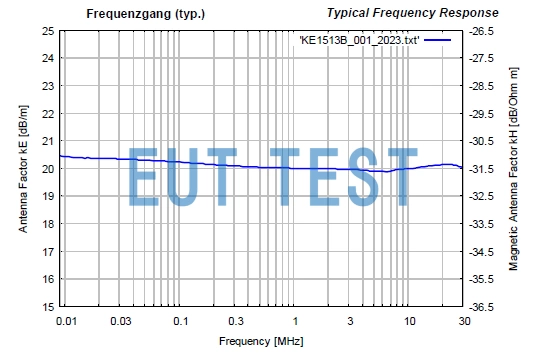

Graph of antenna coefficients of technical parameters:

Plot of antenna coefficients for radiated emissions

Order No. EUTS0406
