HI-1710A ETS-LINDGREN Microwave Oven Radiation Leakage Meter

Product Description:

The ETS-Lindgren HI-1710A is an industry-standard handheld microwave measurement system for measuring microwave oven radiation. Sold and quoted by EUTTEST Shenzhen, this microwave oven radiation leakage meter utilizes and combines all of ETS-Lindgren's proven microwave meter technologies, including reliable semiconductor diode sensor technology with digital processing technology for automatic oven scanning. digital processing for automatic oven scanning.

Product Features:

• Time response features or filters are available: raw (1710A version 3.XX only), fast and slow. These allow standard manual scanning measurements, as well as faster scanning potential similar to automatic scanning systems.
• The unit is shielded with the necessary isolation and attenuation devices to provide immunity to stray leakage of microwave energy.
• The circuit is powered by a regulated power supply with common industrial transient protection devices.

When not available:

If the unit is inoperable and unusable, check that the fuse in the power input module has not been blown. EUTTEST offers original replaceable blown fuses that use the same value and fuse type, which effectively prevents the 1710A from being in unsafe operating conditions.

ETS-Lindgren HI-1710A Manual Replaceable Fuse

Technical parameters：

Product Specification Sheet:

Rear panel input controls:

The rear panel of the tester provides two control signal input ports:

• ZERO - dry closure switch that zeroes the HI-1710A
• RS-232 - Standard 9-pin, 2 communication inputs

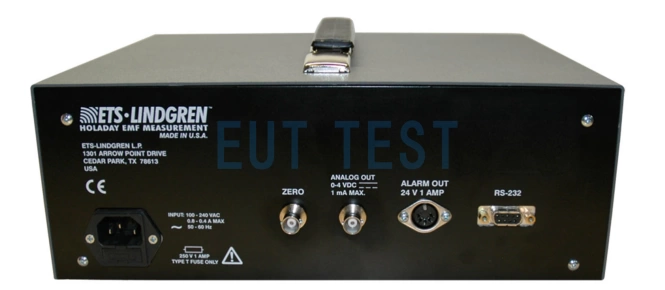

ZERO and RS232 control input ports

CE Compliance Affirmation:

The 1710A meets the LVD requirements of 73/23/EEC and the EMC requirements of 89/336/EEC.

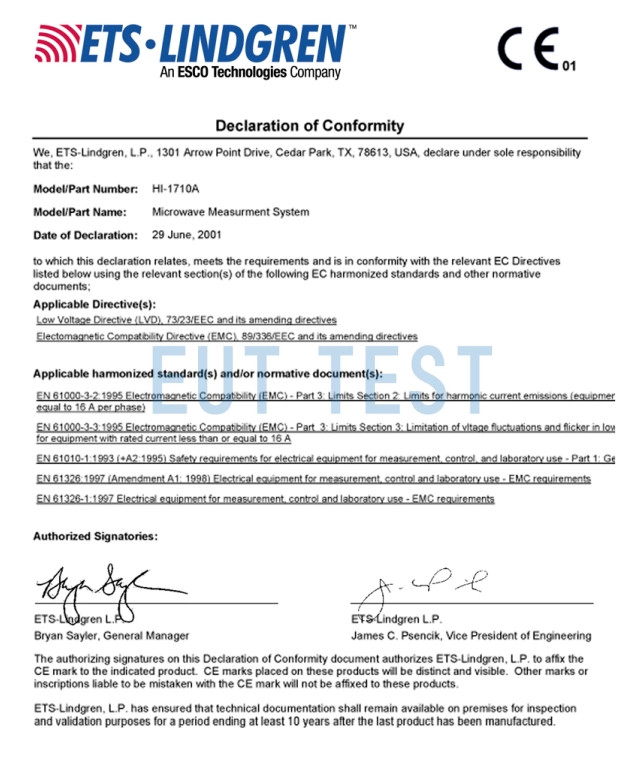

CE Compliance Statement for HI 1710A

side view

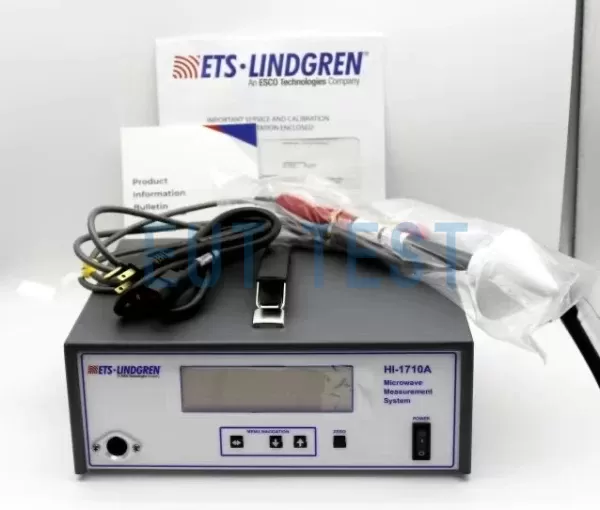

All Configurations

front view

Differences from other similar products:

EUTTEST also sells the following different models of ETS-LINDGREN Power Density Testers, and we have listed their most important parameters in the table below for your comparison.

Feel free to click on the links below to learn more about the products and contact us for a product quote.

ETS-lindgren Official Authorized Distributor:

EUTTEST is an official authorized reseller of ets-lindgren, whose full official name is: ETS-Lindgren Inc.(ESCO technology Company)

Ltd. is authorized by ets-lindgren to sell all products in China region and provide technical service for the products sold.

Click to view the image of the authorization
