Product Description:
HS 3D-CONTROL is a three-dimensional magnetic field strength meter developed and designed by Schwarzbeck, Germany. It can be connected with schwarzbeck's magnetic field probes to test the magnetic field strength of X-axis, Y-axis and Z-axis, and can also measure the magnetic field strength of one axis alone, as well as the amplitude, inclination and tilt.

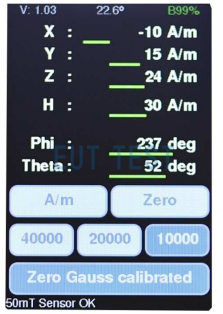

HS 3D-CONTROL displays the magnetic field strength in three dimensions separately.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Product model | HS 3D-CONTROL |
| manufacturer | Schwarzbeck |
| agent | Shenzhen EUT TEST |
| Test frequency range | DC only |
| resolution (of a photo) | ±1 μT |
| connector | USB with 6PIN connector |
| Power supply | 3.7V Ah |
| working hours | 16 hours. |
| material | aluminum |
| size | 140 x 100 x 120 mm |
| weight | 600 grams |
Optional DC magnetic field probe sensor:
Currently you can choose between the following two DC magnetic field probes:
- HS 3D-SENS50T1 / Maximum Magnetic Field Measurement Typical 50 mT
- HS 3D-SENS100T1 / Maximum Magnetic Field Measurement Typical 100 mT
When contacting EUTTEST to purchase the above magnetic field probe and HS 3D-CONTROL, you can follow our instructions to perform the calibration process and begin testing as soon as the calibration is complete.

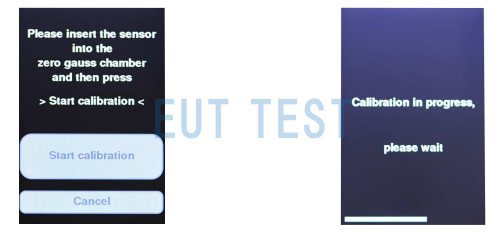

Calibration of HS 3D-SENS50T1, HS 3D-SENS100T1 and HS 3D-CONTROL
Provides API control port:
The HS 3D-CONTROL can not only be charged using the USB interface, but is also automatically recognized by Windows as a serial interface. It is sufficient to set the baud rate 115200 8N1 in the terminal program.
You can also send the following commands to this device for automated far-field control testing.
- #ver?
- #v?
- #u?
- #r?
- #bat?
- #lock?
- #type?
More remote API operation commands are detailed in the operating instructions.
