ISN 50561-1 Impedance Stabilization Networks according to EN 50561-1

Product Description:

ISN 50561-1 is an impedance stabilization network manufactured by schwarzbeck in accordance with EN 50561-1. This ISN, which is distributed by EUTTEST in China, provides good decoupling (CS) between the DUT and the power supply system, as well as coupling the disturbing voltages from the DUT line to the measurement connectors, and all ports provide defined impedances that minimize the impact on the EUT power supply. that minimizes the impact on the EUT power supply.

Technical parameters：

Product Specification Sheet:

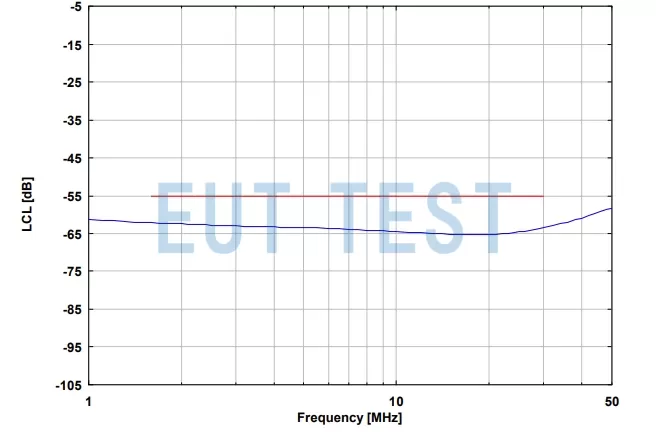

Longitudinal Conversion Loss LCL for ISN 50561-1

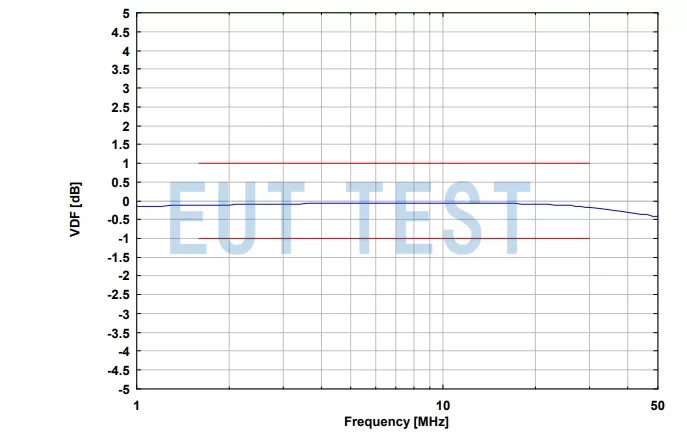

ISN 50561-1 Voltage dividing factor

Order No.: EUTS0803
