ISN 50561-3 Schwarzbeck Impedance Stabilization Network for PLCs

ISN50561-3 Common mode attenuation between EUT-AE ports

ISN50561-3 Differential attenuation between EUT-AE ports

Differential Voltage Coefficients for ISN 50561-3

ISN required by BS EN 50561-3:2016 Appendix B

Order Number: EUTS0802

Type: T-type linear impedance stabilization network-ISN

Brand: Schwarzbeck

Min. order: 1 Unit

Stock:

schwarzbeck Real Time Inventory

Delivery: Click on the link above to inquire

Standards:

EN 50561-3

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Product Description:

ISN 50561-3 is an ISN-impedance stabilized network product developed by Schwarzbeck from Germany, authorized by Shenzhen EUTTEST agent sales and quotation service, this product is manufactured according to the requirements of EN 50561-3 Appendix B, dedicated to PLC-power line communication equipment.Asymmetrical interference transfer voltageMeasurement, the Schwarzbeck ISN-50561-3 is a measurement network that provides a defined high-frequency impedance at the feeder of the terminal voltage measurement point, which also isolates (decouples) your product from ambient noise on the power line. The device also defines the coupling path between the EuT and the AE.

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Model:

ISN 50561-3

Manufacturer:

schwarzbeck

Agent sales in China:

Shenzhen EUT TEST

Frequency range:

30 MHz ~ 118 MHz

Maximum current:

16 A

Maximum operating voltage:

265 VAC @50/60 Hz (265 VAC @50/60 Hz)

Differential mode impedance:

100 Ω ± 20% (30 MHz - 87.5 MHz)

Differential mode attenuation:

40 dB ± 4 dB (1.6 MHz - 87.5 MHz)

Common mode impedance:

50 Ω +30%/-10% (30 MHz - 118 MHz)

Voltage division factor EuT (diff. mode) - Measurement port (common mode):

Typical 5.7± 0.5 dB

Measurement Port:

2 x BNC (female) 50 Ω

Connector EuT, CS:

4 mm Safety Lab Connector

Shell material:

aluminum

Product Dimensions:

445 mm x 145 mm x 470 mm

Weight:

8 kg

“Reminder: swipe tables left and right”

Conforms to the requirements of Appendix B of the standard BS EN 50561-3:2016:

The 50561-3 standard specifies in Appendix B what type of ISN should be used to measure the asymmetrical interference voltage of PLC devices as shown below:

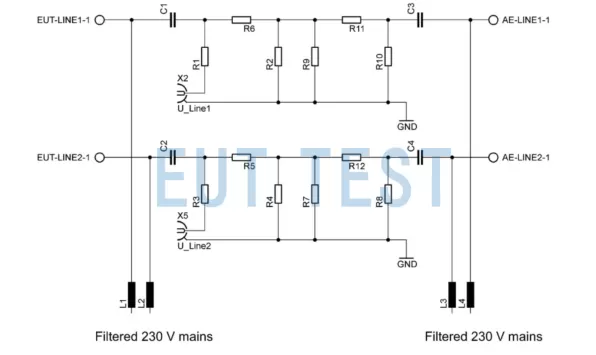

ISN required by BS EN 50561-3:2016 Appendix B

The standard also specifies that the differential voltage dividing factor is calculated according to the formula mentioned in EN 55016-1-2. Based on the formula and our ISN structure, 20*log (50/96.3)=5.7 dB, we can measure that the dividing factor of the ISN 50561-3 should be close to 5.7 dB for the EUT-BNC port, as shown in the figure below:

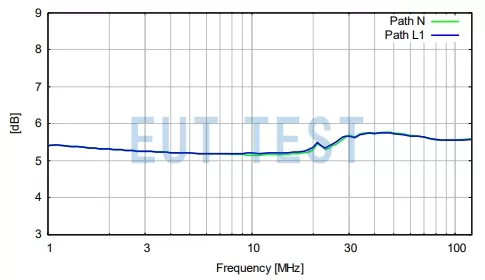

Differential Voltage Coefficient

In addition, Appendix B defines that the values of differential attenuation and common mode attenuation should conform to the following two picture data.

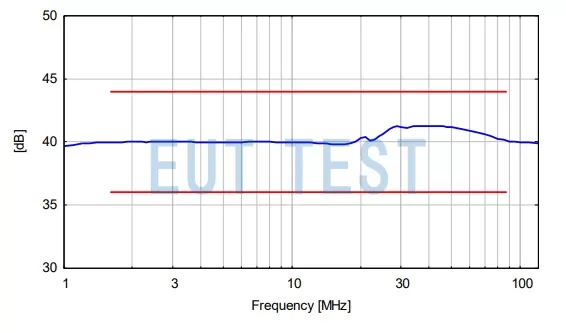

ISN50561-3 Differential attenuation between EUT-AE ports

ISN50561-3 Common mode attenuation between EUT-AE ports

Therefore, the ISN 50561-3 from SCHWARZBECK fully meets the measurement requirements for measuring asymmetrical disturbance voltages in PLC equipment, contact EUTTEST for a quotation.

Order No. EUTS0802

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.
