NNBL 8229-HV Schwarzbeck Linear Impedance Stabilization Network Voltage 1000V

Introduction：

NNBL 8229-HV is a LISN-Linear Impedance Stabilization Network (LISN-LISN) produced by SCHWARZEBCK and authorized to be sold by our agent for EMC testing of military equipment, supporting a maximum test current of 200A and a maximum voltage of AC1000V and DC800V, making up for NNBL 8226-HV version of the LISN has insufficient measurable voltage. This LISN is equipped with a fan for heat dissipation, and blockage of the fan outlet should be avoided during test use.

The LISN is designed with 50µH+5Ω impedance and complies with the latest version of AFSL and NTSC EMC test standards, which are listed in the technical data table below.

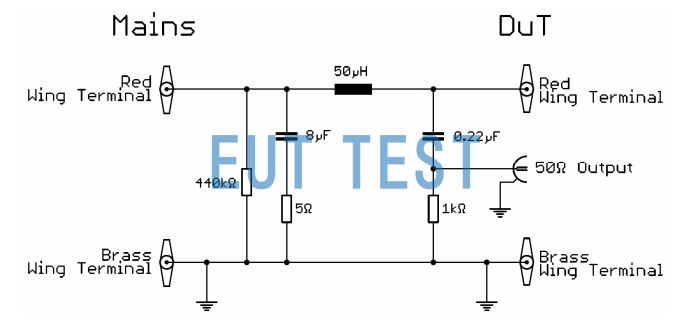

Impedance Design Schematic

Technical Parameter Sheet:

For more information about NNBL8229-HV, please contact us.
