R&S RT-ZH10 400M Oscilloscope Voltage Probe

Product Description:

The R&S RT-ZH10 is a passive probe manufactured by R&S and distributed by EUTTEST in Germany. It is usually used for general purpose functional testing or for testing low frequency signals. The passive probe (RT-ZH10) comes standard with every test channel of the oscilloscope. The passive high voltage probes typically test voltages up to 1000V.

The RT-ZH10 is a probe accessory for R&S RTM or R&S RTH serial oscilloscopes.

RT-ZH10Technical parameters：

• Bandwidth: 400 MHz
• Attenuation factor: 100:1
• DC input impedance: 50 MΩ ± 1 %
• Input capacitance: 7.5 pF
• Dynamic range: 1000 Vrms;
• Peak transient overvoltage: 4000V;
• EUTTEST offers additional hosting:oscillograph；

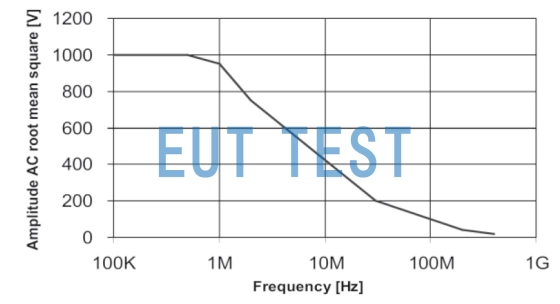

R&S RT-ZH10 Non-Destructive Testing Root Mean Square Voltage

RT-ZH10 model selection:

• R&S®RT-ZP10 Passive, Single-Ended, 10:1 500 MHz, 400 V (RMS)
• R&S®RT-ZH10 Passive, Single-Ended, 100:1 400 MHz, 1 kV (RMS)
• R&S®RT-ZH11 Passive, Single-Ended, 1000:1 400 MHz, 1 kV (RMS)
• R&S®RT-ZI10 Passive, Single-Ended, 10:1, Isolated 500 MHz, 600 V CAT IV/1000 V CAT III
• R&S®RZ-ZI10C Passive, Single-Ended, 10:1, Isolated, Compact 500 MHz, 300 V CAT III
• R&S®RT-ZI11 Passive, Single-Ended, 100:1, Isolated 500 MHz, 600 V CAT IV/1000 V CAT III/3540 V CAT 0
• R&S®RT-ZZ80 Passive, Single-Ended, 10:1, Broadband 8 GHz 20 V (RMS)
• R&S®RT-ZP1X Passive, Single-Ended, 1:1 38 MHz, 55 V (RMS)
• R&S®RT-ZPR20®/40 Active, single-ended, 1:1 1) 2/4 GHz ±850 mV
• R&S®RT-ZVC02/04 Multi-Channel Power Probe 1 MHz ±1.8 V to ±15 V/±4.5 uA to ±10 A
• R&S®RT-ZS10L Active, single-ended, 10:1 GHz ±8 V
• R&S RT-ZS10E® Active, Single-Ended, 10:1 1) 1 GHz ±8 V
• R&S®RT-ZS10®/20/30/60 Active, single-ended, 10:1 1) 2) 1/1.5/3/6 GHz ±8 V
• R&S®RT-ZD01 Active, differential, 100:1/1000:1 100 MHz ±140 V (100:1), ±1400 V (1000:1)
• R&S®RT-ZD002 Active, differential, 10:1/100:1 25 MHz ±700 V
• R&S®RT-ZD003 Active, differential, 20:1/200:1 25 MHz ±1400 V
• R&S®RT-ZD02 Active, differential, 10:1 200 MHz ±20 V
• R&S®RT-ZD08 Active, differential, 10:1 800 MHz ±15 V
• R&S®RT-ZD10/20/30 Active, differential, 10:1 1) 2) 1/1.5/3 GHz ±5 V with R&S RT-ZA15®: ±70 V DC/±46 V AC (peak)
• R&S RT-ZD40® Active, Differential, 10:1 1) 2) 4.5 GHz ±5 V
• R&S®RT-ZM15/30/60/90 Active Multimode Amplifier Module, 10:1 / 2:1 1 1) 2) 1.5/3/6/9 GHz, depending on the tip module used
• R&S®RT-ZMA10 Welding 3) 4) ±2.5 V (10:1), ±0.5 V (1:1)
• R&S®RT-ZMA12 Square 3) 4), 6 GHz max ±2.5 V (10:1), ±0.5 V (1:1)
• R&S®RT-ZMA15 Quick Connect 3) 4) ±2.5 V (10:1), ±0.5 V (1:1)
• R&S®RT-ZMA30 Viewer 3) 4) ±2.5 V (10:1), ±0.5 V (1:1)
• R&S®RT-ZMA40 SMA 3) 4), 6 GHz max ±2.5 V (10:1), ±0.5 V (1:1)
• R&S RT-ZMA50® Extreme Temperature Soldering 3) 4) , 2.5 GHz max ±2.5 V (10:1), ±0.5 V (1:1)
• R&S®RT-ZHD07® Active, Differential, 25:1/250:1 1) 2) 200 MHz ±750 V (peak)
• R&S®RT-ZHD15/16 Active, differential, 50:1/500:1 1) 2) 100/200 MHz ±1500 V (peak)
• R&S®RT-ZHD60 Active, differential, 100:1/1000:1 1) 2) 100 MHz ±6000 V (peak)
• R&S®RT-ZC02 AC/DC Current Probe 20 kHz, 100 A (RMS) / 1000 A (RMS), 0.01 V/A / 0.001 V/A Switchable
• R&S®RT-ZC03 AC/DC Current Probe 100 kHz, 20 A (RMS) / ±30 A (peak), 0.1 V/A
• R&S®RT-ZC05B AC/DC Current Probe 1) 2 MHz 500 A (RMS) / ±700 A (peak), 0.01 V/A
• R&S®RT-ZC10/B AC/DC Current Probe 1) 10 MHz, 150 A (RMS) / ±300 A (peak), 0.01 V/A
• R&S®RT-ZC15B AC/DC Current Probe 1) 50 MHz, 30 A (RMS) / ±50 A (peak), 0.1 V/A
• R&S®RT-ZC20/B AC/DC Current Probe 1) 100 MHz, 30 A (RMS) / ±50 A (peak), 0.1 V/A
• R&S®RT-ZC30 AC/DC High Sensitivity Current Probe 120 MHz, 5 A (RMS)/±7.5 A (peak), 1 V/A
• R&S®HZ-14 Active E and H Near Field Probe Kit 5) 9 kHz to 1 GHz N/A
• R&S®HZ-15 Passive E and H Near Field Probe Kit 30 MHz to 3 GHz N/A
• R&S®HZ-17 Compact H Near Field Probe Kit 30 MHz to 3 GHz N/A
  • 1) Includes Rohde & Schwarz probe interface.
  • 2) Includes R&S®ProbeMeter and miniature buttons for instrument control.
  • 3) Tip module for R&S®RT-ZMxx probes.

Order No. EUTS0658
