R&S SMBV100A Vector Signal Source 9 kHz-6 GHz

SMBV100A Maximum available output rating for both output modes

Order Number: EUTS0660

Type: signal generator

Brand: Schwarzbeck

Min. order: 1 Unit

Stock:

schwarzbeck Real Time Inventory

Delivery: Click on the link above to inquire

Standards: Common Test Standards

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Product Description:

The R&S SMBV100A is a vector signal source manufactured by R&S in Germany and distributed by EUTTEST in Shenzhen. It is available in the frequency range of 9 kHz to 3.2 GHz/6 GHz and supports 3GPP LTE FDD/TDD, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution, TD-SCDMA, WiMAX™ and all other important digital standards. SCDMA, WiMAX™ and all other important digital standards.

Advanced vector sources must be flexible, and the SMBV100A offers excellent signal quality and cost-effective performance, setting a new standard for mid-range vector sources. the SMBV100A delivers excellent RF performance, as well as very high output levels and short signal build-up times. the SMBV100A's internal baseband signal generator can generate a wide range of digital communication standard signals (e.g. WiMAX, HSPA+, LTE ). At the same time, the SMBV100A's internal baseband signal generator can generate signals for a wide range of digital communication standards (e.g., WiMAX, HSPA+, LTE). a frequency range of 9 kHz to 6 GHz covers all important frequency bands used for digital modulation.

SMBV100A Product Features:

Capable of meeting future applications
Hardware design ensures future-proofing
High power output in RF frequency range up to 6 GHz
RF signal bandwidth of up to 120 MHz is possible using internal signals
Maximum RF bandwidth of the I/Q modulator exceeds 500 MHz
Software upgrade feature keeps device functionality up-to-date
Signals can be customized to be generated within the instrument using the baseband option
Baseband signal encoder with real-time capability for direct signal generation
Integrated ARB function to replay pre-generated waveforms
ARB-only models available in different bandwidths
Memory depth up to 256 M samples to generate long test sequences
Supports all modern digital standards
Convenient graphical user interface for clean and clear signal configuration
2G/3G/LTE mobile communication standards
Wireless standards including mobile WiMAX and WLAN IEEE 802.11n
High RF performance for all types of applications
Extremely low phase noise ensures that digital signals have a very low EVM (Error Vector Magnitude)
High output level compensates for losses in test/system equipment
Fast build-up time for faster measurements
With basic analog modulation
Flexible signal processing capabilities and baseband connectivity
CW (continuous wave) interference and AWGN (additive Gaussian white noise) simulation
Analog and digital baseband signal outputs
Supports R&S®EX-IQ-Box digital interface adapters
Simple maintenance concept with low cost of use
euttest rapid on-site repair
Minimize maintenance costs with up to 3-year calibration cycles
Simple modular design reduces maintenance time
Comprehensive and specialized at the same time
Optimized for high production throughput
Multi-band waveform mode for fast switching between test sequences
Very high level repeatability ensures stable and reliable test conditions
Can be used in aerospace and defense applications
Versatility to generate both unmodulated and complex modulated pulse signals
Multiple instruments can be coupled to generate phase coherent RF signals

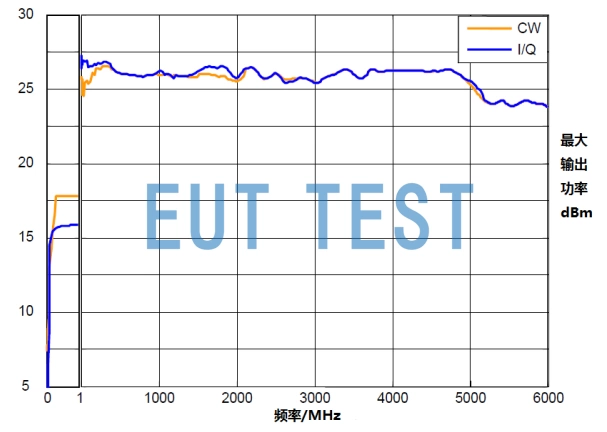

SMBV100A Maximum available output rating for both output modes

SMBV100A Technical Data:

“Reminder: swipe tables left and right”

Equipment Model

SMBV100A

manufacturer

Rohde & schwarz Rohde & Schwarz

China Agent Sales

Euttest

Frequency range:

Continuous wave mode: 9 kHz - 6 GHz;
I/Q Mode: 1 MHz - 6 GHz

Frequency resolution.

0.001Hz

Sweep output capability:

Automatic scanning at discontinuous steps

Trigger Mode:

Auto/single/step, start and end (external contact port) euttest

Trigger source:

Keypad control/external contact/remote control

Trigger Polarity:

Positive/Negative

Step size:

Linear stepping: full frequency range, minimum 0.001Hz
Logarithmic step: 0.01% to 100%

Residency time:

10ms to 10s

Minimum resolution of dwell time:

0.1ms

Level setting range.

1 MHz ≤ f ≤ 6 GHz: -145 dBm to +30 dBm
300 kHz ≤ f < 1 MHz: -145 dBm to +18 dBm euttest
100 kHz ≤ f < 300 kHz: -145 dBm to +13 dBm
9 kHz ≤ f < 100 kHz: -145 dBm to +8 dBm

Minimum resolution:

0.01dB

Level accuracy:

200 kHz ≤ f ≤ 3 GHz: < 0.5 dB
f > 3 GHz: < 0.9 dB

Level setting time:

CW continuous wave: <2.5ms
I/Q mode: <5ms euttest

Size:

W*H*D: 344 mm × 155 mm × 368 mm

Weight:

7.9kg

“Reminder: swipe tables left and right”

SMBV100A Options::

R&S®SMBV-B103: 9kHz-3.2GHz test range available
R&S®SMBV-B106: 9 kHz to 6 GHz Test Range Available
R&S®SMBV-K22: Pulse Modulation
R&S®SMBV-K23: Pulse Generator
R&S®SMBV-B51: ARB Baseband Generator RF Bandwidth 60MHz
R&S®SMBV-K6: Pulse programmer (PC software)
R&S®ZZA-S334: euttest mounting adapter for mounting sources in 19" standard cabinets
The following two standard test protocols can be supported through upgrades:
- R&S®SMBV-K248: IEEE 802.11a/b/g Standard
- R&S®SMBV-K254: IEEE 802.11n Standard

Order No. EUTS0660
