RSH 113 Schwarzbeck Cross Dipole Antenna

Introduction：

The RSH 113 is a crossed dipole antenna manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and quotation service. This antenna consists of two shortened half-wave dipoles, and the size of the antenna has been reduced by the use of a top-loading disk. The antenna is designed for a frequency range of 108 to 118 MHz and a typical application is Instrument Landing System (ILS-Localizer) measurements. The antenna resembles an omni-directional antenna pattern with horizontal polarization, the antenna can be used for both receive and transmit applications with a nominal impedance of 50 Ω.

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

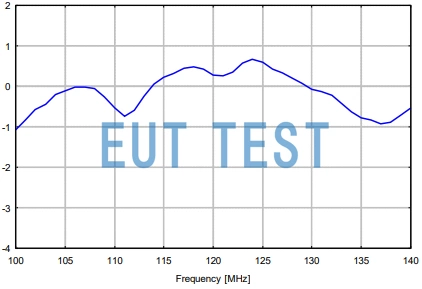

Antenna Gain Graph

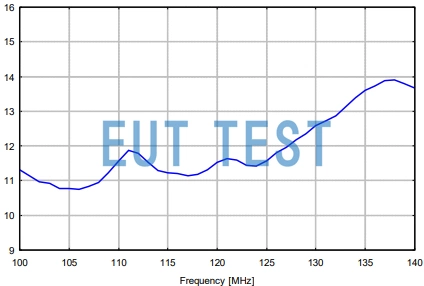

Antenna Coefficient Graph

Order No. EUTS0536
