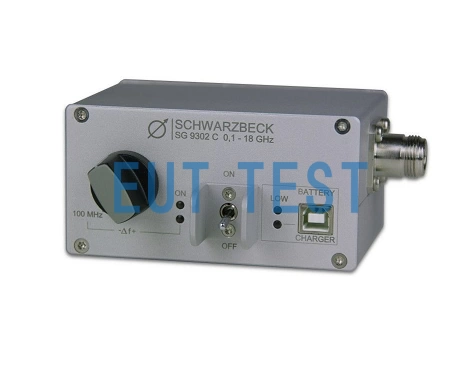

SG 9302 C Schwarzbeck Comb Spectrum Generator Signal Source

Introduction：

The SG 9302 C is a comb spectrum COMB generator signal source manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and after-sales, which outputs signals in the comb spectrum from 100 MHz - 18 GHz. In combination with Schwarzbeck's antennas, it can be used as a radiated source for testing open fields, wave darkrooms or GTEM chambers, laboratory verification, laboratory comparisons. Individual components such as measurement receivers, spectrum analyzers, cable losses and attenuator losses can also be tested.

More affordable 6GHz comb sources can be purchased as follows:

SG 9303 Comb Spectrum Generator Signal Source 10MHz-8GHz

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

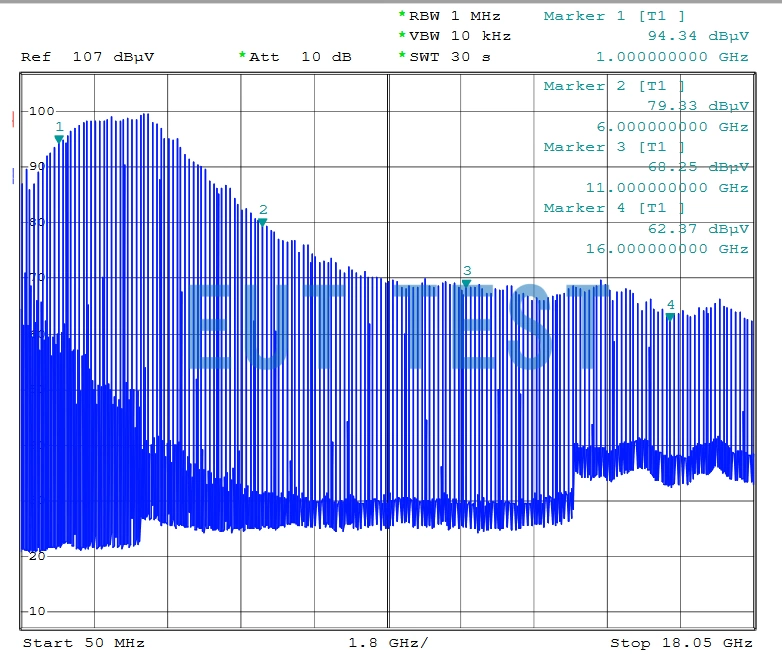

Comb Spectrum Signal Output at 50MHz-18.05GHz

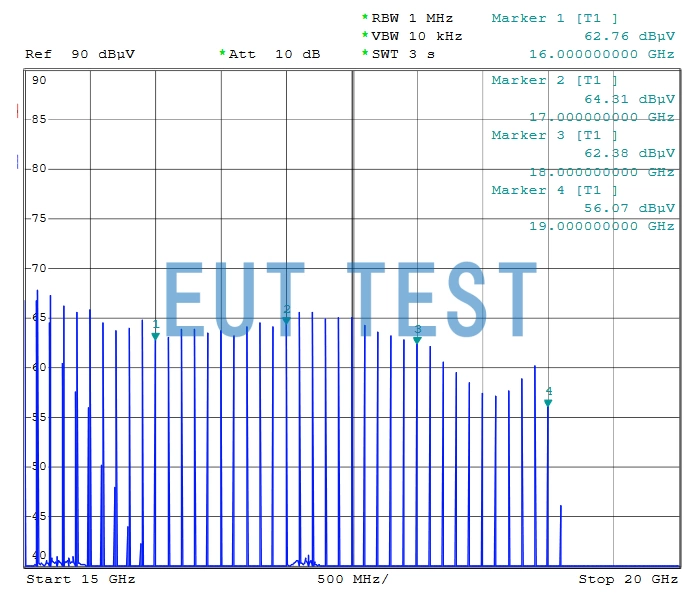

Comb Spectrum Signal Output at 15GHz-20GHz

Contact EUTTEST for actual levels at other frequencies, and we will also match you with a working transmitter antenna for verification use during the lab.

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
