SGA 900 Schwarzbeck Standard Gain Antenna

Introduction：

SGA 900 is a standard gain antenna manufactured by schwarzbeck in Germany and authorized to be sold by EUTTEST in Shenzhen. The antenna consists of a square reflector with dimensions λ*λ and two half-wave dipoles (λ is the wavelength) mounted in front of λ/4 of the reflector plate. The antenna is designed for a frequency of 900 MHz with a gain of 9.8 dBi and a half-power beamwidth of approx. 60 °.

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

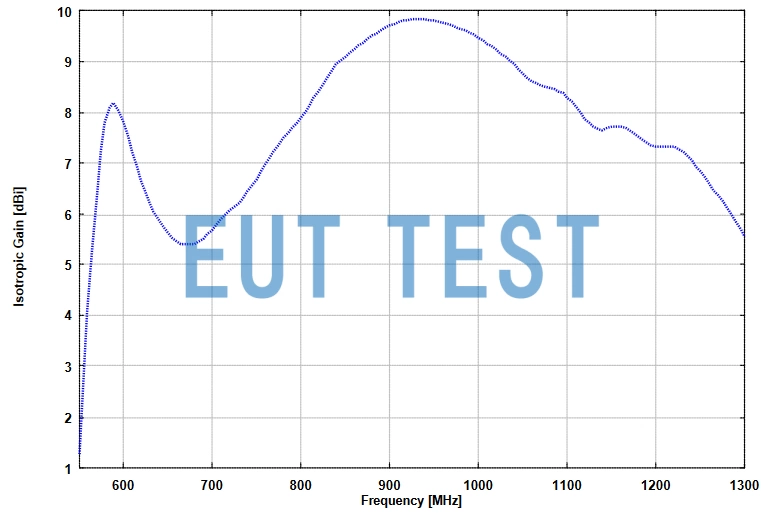

Isotropic Gain Curve

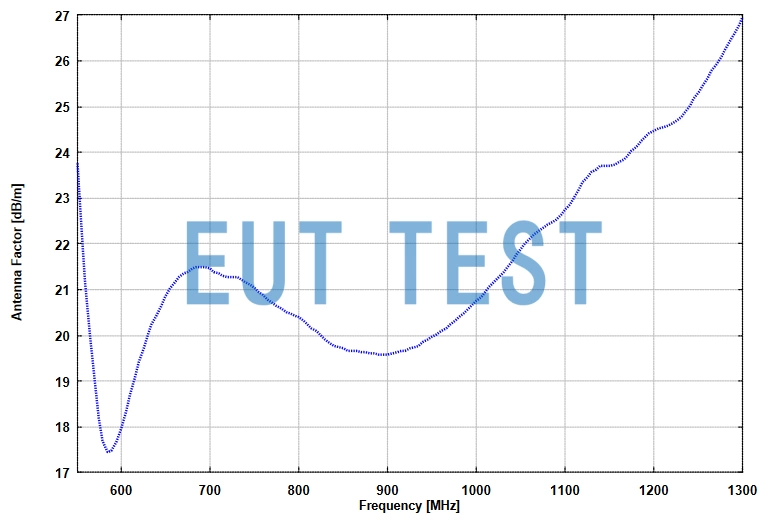

Antenna Coefficient Graph

Order No. EUTS0668
