TSC 7042 Artificial Power Networks to Meet Toyota TSC7042G

Product Description:

TSC 7042 is an artificial power network product to meet Toyota TSC7042G, manufactured by German schwarzbeck and authorized by Shenzhen EUTTEST agent sales, asymmetric single-channel AMN (Artificial Power Network) TSC7042 main applications Toyota automotive electronics standard testconductive emissionIt is designed for use in the automotive field. The impedance characteristics are essentially formed by a 0.5 µHy inductance. The device under test can draw 70 A continuously and may draw more than 100 A for a short period of time.

Technical parameters：

Product Specification Sheet:

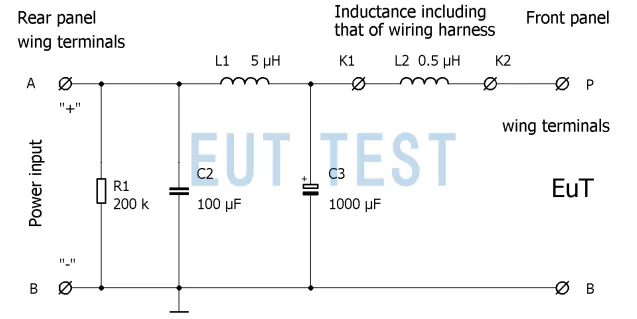

Circuit schematic for schwarzbeck TSC 7042

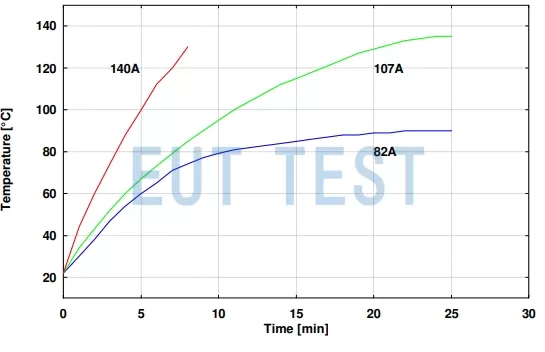

Maximum current as a function of temperature and test time:

The operating current of the TSC7042 is related to both the operating time and the ambient temperature. To meet the 140A current test, you can only work for less than 10 minutes, and to meet the 107A current test, you need to make sure that the ambient temperature is less than 140℃.

The TSC7042 has different measurable currents at different operating times and temperatures.

Order No. EUTS0816
