UHALP 9108 A Schwarzbeck Log Periodic Antenna

Introduction：

UHALP 9108 A is a log-periodic antenna manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and after-sales service. The log-periodic antenna can be used for short-range radiated immunity testing in the range of 0.25GHz-2.4GHz with a power input of 1kW. The symmetrical antenna oscillator on both sides allows it to be used to receive RF interference signals in a predetermined frequency band. Omni-directional gain data and antenna coefficients are available from the factory and can be used by EMC testers for attenuation compensation and power calculations.

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

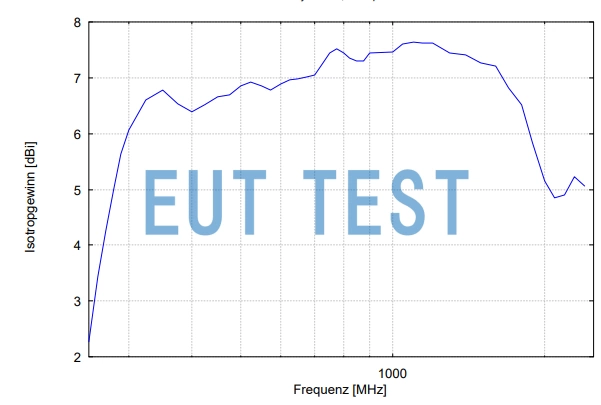

Isotropic Gain Curve

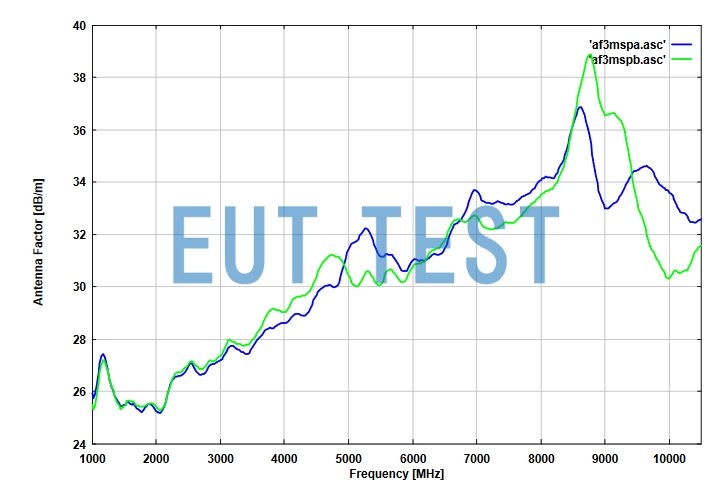

Antenna Coefficient Graph

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
