VAMP 9243 B Schwarzbeck 1m Vertical Monopole Antenna

Product Description:

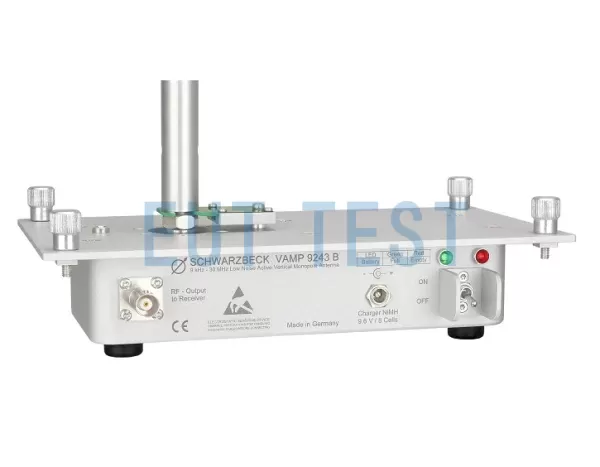

The VAMP 9243 B is a low noise, active, vertically oriented monopole antenna for measuring electric fields in the frequency range 9 kHz to 30 MHz. This product replaces an older model that has been discontinued:VAMP 9243The

Product Features:

Schwarzbeck's pole antenna 9243B is most commonly used in domestic EMC labs for the 1m long vertical monopole antenna requirement mentioned in GB/T 18655 automotive electronics standard, the antenna comes with the standard requirement of the antenna matching unit to ensure that the antenna is correctly impedance matched with the 50Ω EMI receiver in the entire test frequency range, and the SWR of the antenna matching unit output is up to 2:1. The SWR at the output of the antenna matching unit is 2:1 at maximum.

In addition, this antenna meets the requirements of CISPR 16-1-4, CISPR 25, MIL-STD-461, ANSI C63.5, IEE 291, and many other EMC standards, and the antenna can be equipped with a wide range of accessories such as grounding layers, calibration adapters, voltage dividers, and soldering kits that comply with the MIL-STD-461 F standard.

EUTTEST sells the VAMP 9243B antenna,RF cable,EMI Test ReceiverA full set of radiated emission test accessories, all equipment can provide complete factory data or third-party measurement certificates, to ensure that the attenuation or gain of the entire antenna system can be appropriately corrected, the use of the entire test system can be placed in the dark room of the airwaves to measure the radiation emission of your products up to 30MHz whether to meet the limit value line requirements.

Technical parameters：

Product Specification Sheet:

Optional accessories:

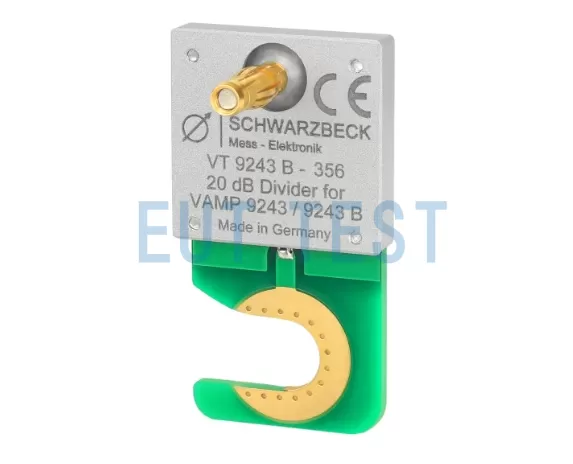

VT 9243B Voltage Divider Option

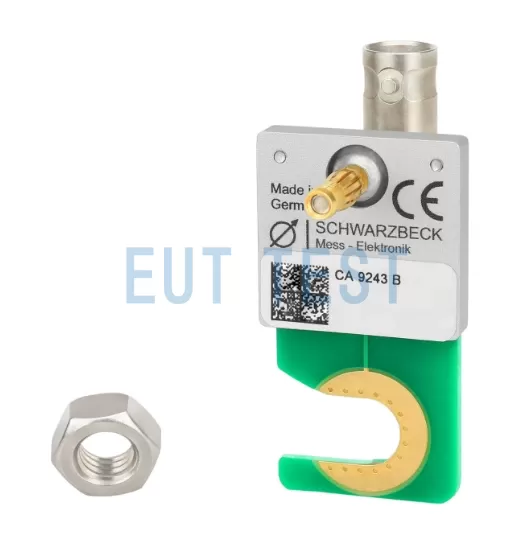

CA 9243B Metrology Calibration Adapter Option

Measurement calibration results:

The antenna coefficients of this antenna can be calibrated using the optional accessories we offer above.

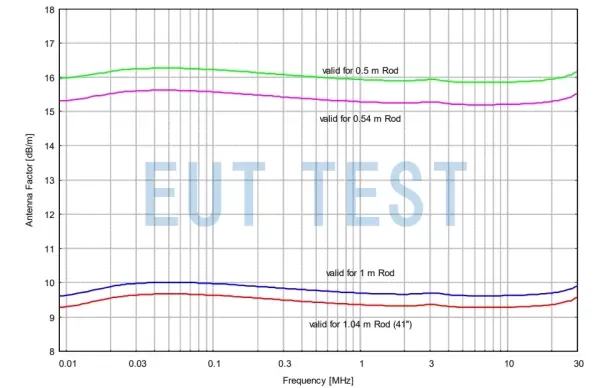

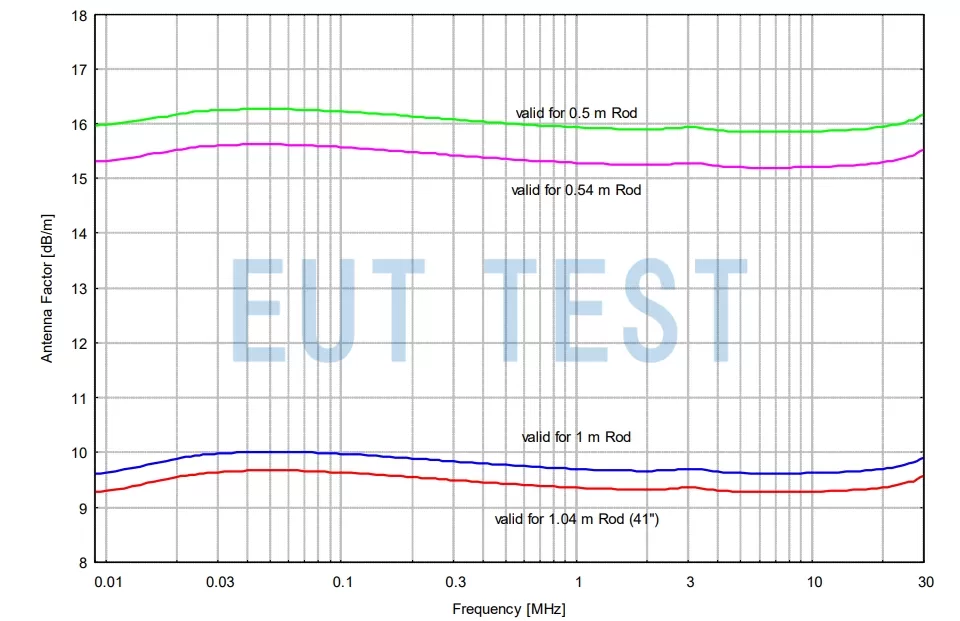

Antenna Factor Calibration Data

Order No. EUTS0872
