VHIC 9260 Schwarzebck Antenna Impedance Converter

Introduction：

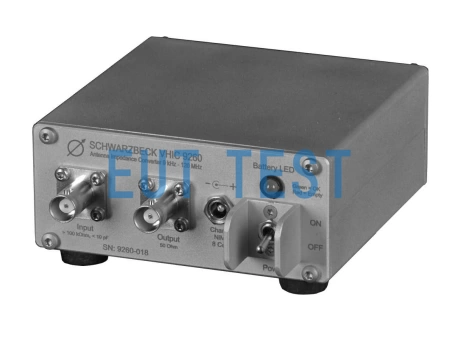

The low noise antenna impedance converter VHIC 9260 is produced by Schwarzbeck, Germany and authorized to be sold by EUTTEST in Shenzhen, China. The high impedance input of this impedance converter accepts input signals larger than 100 kOhm, and then the output is a 50 Ω signal to be used with a common EMI receiver or spectrum analyzer, which allows the measurement of antenna transmissions received within the frequency band from 9 kHz to 120 MHz. The signal source can be a rod antenna or a capacitive voltage probe, and the good linearity is used to accurately measure the limits specified in CISPR 25.

This converter needs to be paired with the CA 9260 Artificial antenna networks are used together.

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

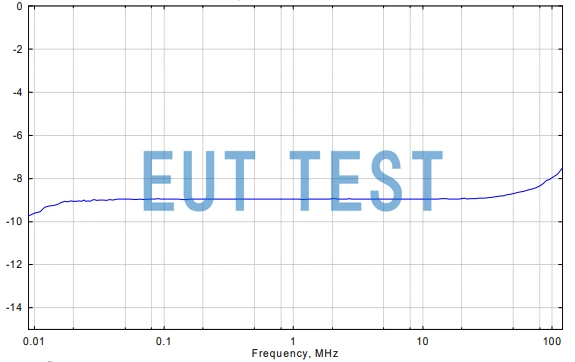

S21 Curve Diagram

Order No. EUTS0550
