VULB 9162 schwarzbeck hybrid biconical log periodic antenna

Introduction：

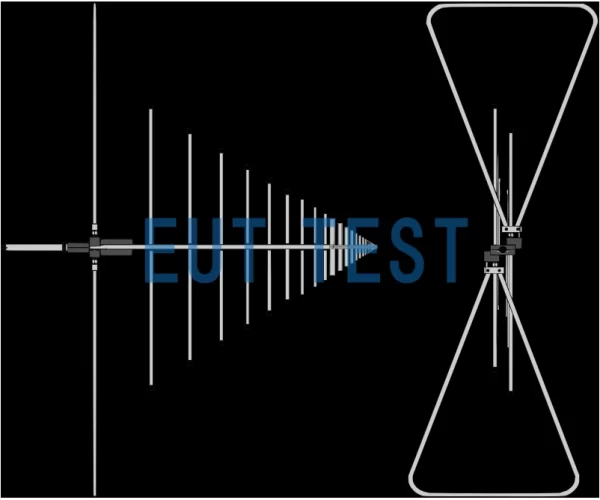

VULB 9162 is a hybrid biconical log-periodic antenna manufactured by Schwarzbeck, Germany and authorized to be sold by Shenzhen EUTTEST agent, this is a linear polarization log-periodic broadband antenna combined with a 4:1 broadband dipole broadband antenna, which can be tested for radiated emissions in the frequency range of 25MHz-8GHz, and you can input 100W-200W of power to radiate electromagnetic fields from the front end of the antenna. front end of the antenna to radiate electromagnetic fields.

If you only need to test up to 4GHz, please choose the optional VULB 9163 It will be cheaper and lighter.

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

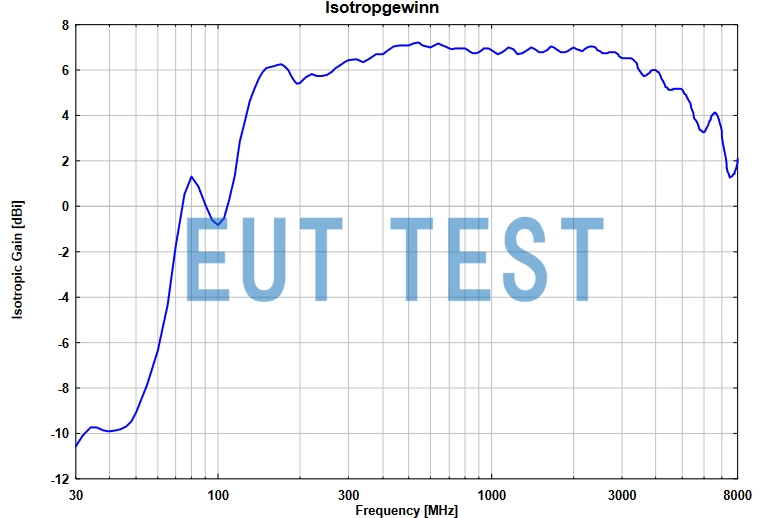

Anisotropic Gain Plot

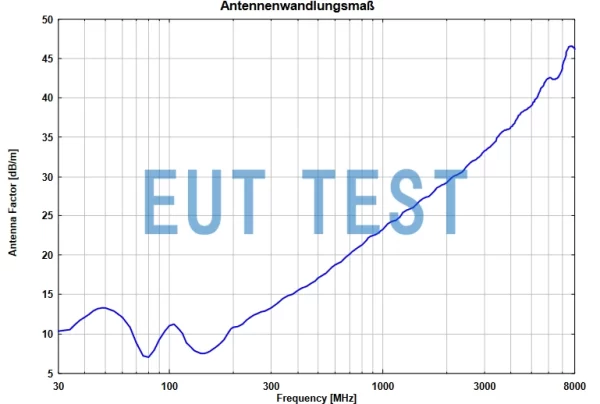

Antenna Coefficient Graph

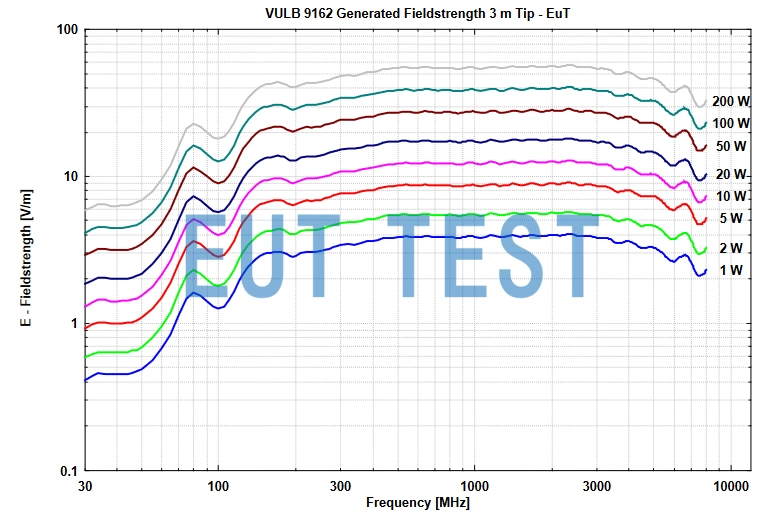

Plot of field strength vs. input power at 3m test position - 3m test distance

This antenna can also be used for 1 meter, 2 meter, 4 meter, test positions, contact EUTTEST for more information.
