VULP 9118 G SCHWARZBECK Log Periodic Antenna

Introduction：

The VULP 9118 G is one of the log-periodic antennas produced by Schwarzbeck, Germany. You can use this antenna for radiation sensitivity testing and applications from 45MHz to 1500MHz, and it creates a field strength of 80V/m at the front of the antenna with an external power amplifier input of 500W, and the antenna supports inputs of up to 1kW of power. We represent and sell all log-periodic antennas of the VULP 9118 sequence, and provide original calibration test data and import/export services.

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

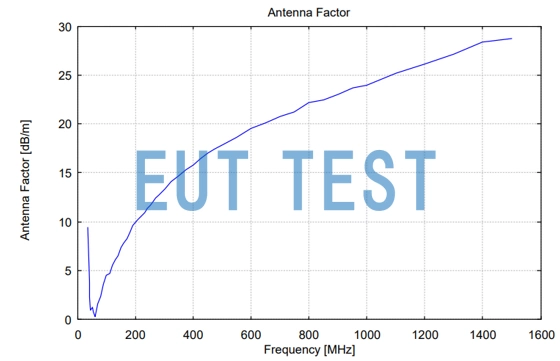

Radiation emission antenna coefficient plot

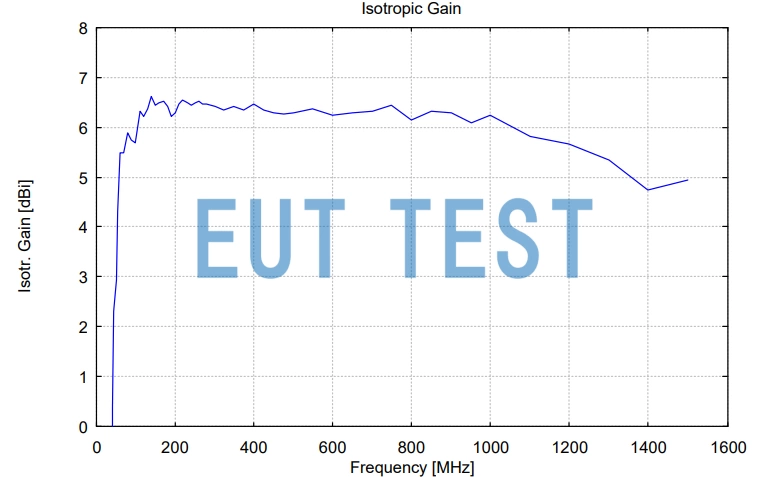

Radiation sensitivity antenna gain plot

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
