VULP 9118 A Schwarzbeck Log Periodic Antenna

Introduction：

The VULP 9118 A is one of the log-periodic antennas produced by Schwarzbeck, Germany, and is authorized to be sold and quoted by euttest. The antenna can be used for RS radiated immunity testing in the frequency range of 180MHz-1.5GHz and can be fed with RF power signals up to 1KW. We provide factory calibrated omni-directional gain data and antenna coefficients for the antenna, which can be used for attenuation compensation and power calculation.

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

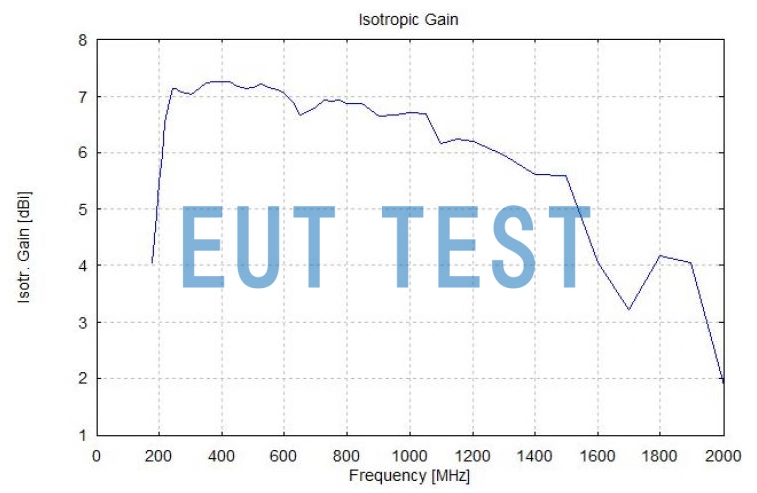

Isotropic Gain Curve

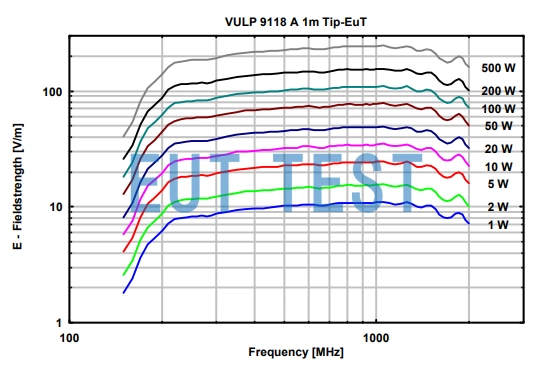

Field strength vs. power plot at 1 meter test distance

For data on other distances contact EUTTEST for advice.
