VULX 9163 schwarzbeck dual polarized antenna

Product Description:

VULX 9163 is a dual-polarized antenna product produced by schwarzbeck, Germany, authorized by Shenzhen EUTTEST agent sales and quotation and after-sales service. You can use it to measure or transmit RF signals in the frequency range of 2.5GHz, and the dual-polarization simultaneous output/reception feature enables you to complete the measurement of two polarizations at once.

Dual polarized antenna wiring method:

Dual-polarized antennas use two polarized outputs, so they need to input/output two different sets of signals, so you need to prepare two sets of test systems to complete the test, we provide completeEMC Test ProgramPlease feel free to contact us for more information.

Product Parameters:

Technical Charts:

If you are going to use it for RF emission-RF immunity applications, use the following gain chart.

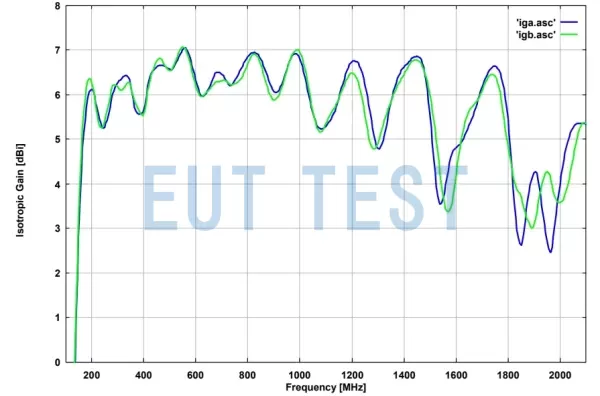

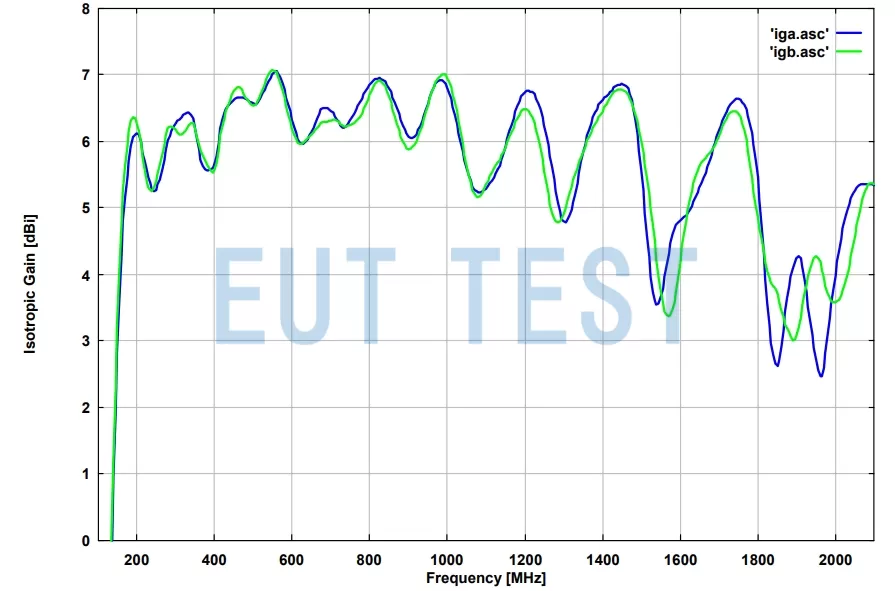

Gain chart for VULX 9163 dual polarized antenna transmitting simultaneously

Use the following antenna factor chart if you are going to use it for RF receive-EMI applications.

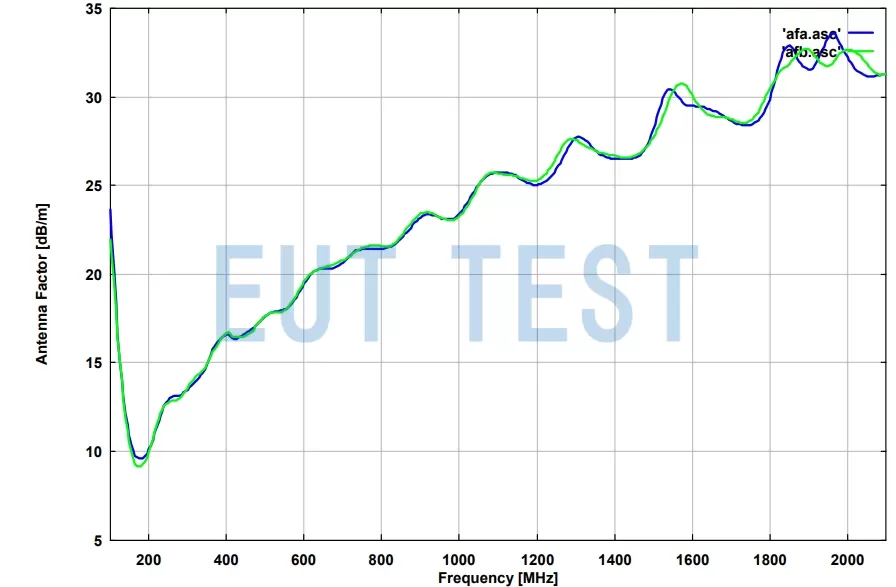

VULX 9163 Correction factor chart for simultaneous reception of dual polarized antennas

We will provide complete data forms for the above two forms in detail at the time of supply, and we will also provide a complete after-sales training service.
