7-TR Tripod ETS-LINDGREN Large EMC Antenna Tripod Stand

7-TR Tripod ETS-LINDGREN EMC Antenna Tripod Holder

Figure 1: Manual control of the ETS 3106B using 7-TR/POL-M to raise and lower it over a range of 1-4 meters

Order Number: EUTS0757

Type: antennae tower

Brand: ETS-Lindgren

Min. order: 1 Unit

Stock: 0

Delivery: 16 weeks

Standards: Common Test Standards

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Product Description:

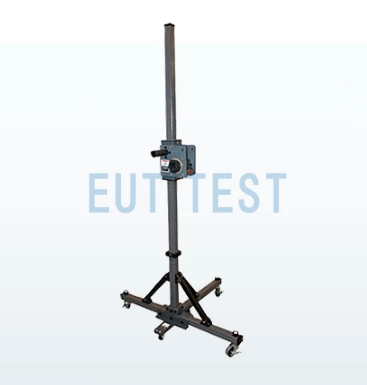

7-TR Tripod is a large EMC antenna tripod developed and manufactured by ETS-LINDGREN in the U.S.A. It is specially designed for EMC antenna installation and testing. 7-TR has a stronger loading capacity than 4-TR, and it has added the function of compressed gas control and remote communication to control the lifting and lowering of the antenna.

7-TR is sold and quoted service by Shenzhen EUTTEST Testing Technology Co., Ltd. We guarantee that this product is compatible with all antennas of ETS-lindgren, and we provide three different versions: manual, pneumatic, and ETS 3106.

Product Parameters:

“Reminder: swipe tables left and right”

Product model

7-TR Tripod

manufacturer

ETS-Lindgren

Authorized Importer

Shenzhen EUTTEST

Rated Load Antenna Weight

13.5 kg

material (that sth is made of)

glass fiber

Maximum Antenna Weight

26 kg

Minimum Antenna Mounting Height

90 cm.

Maximum antenna mounting height

218 cm.

functionality

Antenna height adjustment (manual or pneumatic)
Antenna polarization adjustment (manual or pneumatic)

optional version

7-TR/POL Manual : Manual lift antenna version
7-TR/POL Pneumatic: Pneumatic lift antenna version
7-TR/POL 3106: 3106 serial antenna-specific version (see figure 1 for mounting 3106B antenna)
7-TR: Basic Antenna Tripod with Straight Arm
7-TR/POL: Tripod assembly with pneumatic polarization, excluding boom assembly
7-TR/POL-M: Tripod assembly with manual polarization, excluding boom assembly

Pneumatic version electrical parameters:

Air: 6.1 bar; 90 psi (pneumatic polarized version only)
I.O. port: 1 ST fiber optic input
Interface device: 500 mA; 12 VDC
Power input: 60 Hz
Power supply: 160 mA; 120 VAC

Optional Accessories

Antenna adapters - based on antenna selected
Cross arm assembly:
Cantilever assembly, straight ((109042))
Cantilever Assembly, Offset/Manager (108983)
Offset movable arm assembly for 3106 B (108507)
Boom assembly, bracket mount only (114141)

“Reminder: swipe tables left and right”

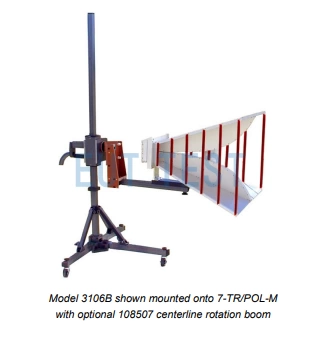

The figure below shows the combination of the3106BInstallation schematic for mounting to 7-TR/POL-M. The ETS 108507 option must be purchased and requires contacting EUTTEST for in-home installation.

Figure 1: Manual control of the ETS 3106B using 7-TR/POL-M to raise and lower it over a range of 1-4 meters

ETS other similar products:

ETS-lindgren offers a wide range of EMC antenna towers for different applications, which can fulfill the needs of antenna elevation, antenna angle control and so on.

4-TR Tripod 2-meter Antenna Lifting Tripod
7-TR Tripod , 1-4 Meter Antenna Lifting Antenna Tower, Manual Version & Pneumatic Version (This Product)
2175 Pneumatically adjustable 1-4 meter antenna elevation antenna tower
1052 Portable and manually adjustable 1-4 meter antenna elevation antenna tower
2171B Adjustable Antenna Angle 1-4 Meter Antenna Elevating Antenna Tower

ETS-lindgren Official Authorized Distributor:

EUTTEST is an official authorized reseller of ets-lindgren, whose full official name is: ETS-Lindgren Inc.(ESCO technology Company)

Ltd. is authorized by ets-lindgren to sell all products in China region and provide technical service for the products sold.
