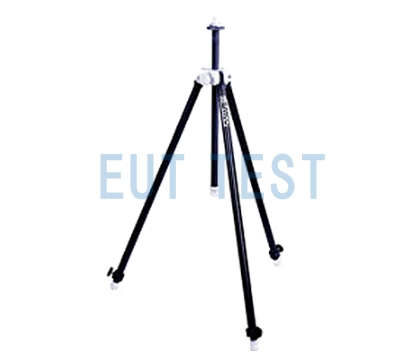

4-TR Tripod ETS-LINDGREN EMC Antenna Tripod

Order Number: EUTS0756

Type: Antenna tripod

Brand: ETS-Lindgren

Min. order: 1 Unit

Stock: 0

Delivery: 16 weeks

Standards: Common Test Standards

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Product Description:

4-TR Tripod is by the United States ETS-LINDGREN research and development and manufacturing of EMC antenna tripod, dedicated to electromagnetic compatibility testing antenna installation and testing, the use of 4-TR tripod can be matched with all the antenna products of ETS, and provide supporting the installation of the antenna adapter, the maximum load can be 11.8 kg of antenna, the installation of the maximum height of up to 94-203 cm. It can be used with all ETS antenna products and provide matching mounting antenna adapter, the maximum load can be 11.8kg antenna, the maximum height after mounting can reach 94-203cm, which can fully meet the military standard or automotive electronics standard 1 meter antenna testing needs.

Product Features:

Made of low-reflective flax phenolic and dieline resins
Available for indoor and outdoor test sites
Keep the center height vertical during adjustment

Product Parameters:

“Reminder: swipe tables left and right”

Product model

4-TR Tripod

manufacturer

ETS-Lindgren

Authorized Importer

Shenzhen EUTTEST

Maximum Antenna Weight

11.8 kg

Minimum Antenna Mounting Height

94 cm

Maximum antenna mounting height

203 cm

Optional Accessories

Antenna adapters - based on antenna selected

“Reminder: swipe tables left and right”

ETS other similar products:

ETS-lindgren offers a wide range of EMC antenna towers for different applications, which can fulfill the needs of antenna elevation, antenna angle control and so on.

The 4-TR Tripod EMC antenna tripod has a maximum elevation of only 2 meters for theMilitary Electronics EMC TestingRequirements; if testing is requiredCivilian standard EMC radiated emissionsPlease choose from the following different models of 4 meter antenna tower products.

7-TR Tripod 1-4 meter antenna lift antenna tower, manual version & pneumatic version
2175 Pneumatically adjustable 1-4 meter antenna elevation antenna tower
1052 Portable and manually adjustable 1-4 meter antenna elevation antenna tower
2171B Adjustable Antenna Angle 1-4 Meter Antenna Elevating Antenna Tower

ETS-lindgren Official Authorized Distributor:

EUTTEST is an official authorized reseller of ets-lindgren, whose full official name is: ETS-Lindgren Inc.(ESCO technology Company)

Ltd. is authorized by ets-lindgren to sell all products in China region and provide technical service for the products sold.
