Product Description:

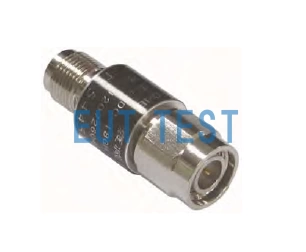

The AFAT218 is a customized fixed attenuator product manufactured by AOEMC with an average input power of 2W and a peak power of 500W for 50Ω test systems. The product is customizable, and the user can select an attenuation size in the range of 1dB to 90dB by following the selection method described below.
Technical parameters：
Product Specification Sheet:
“Reminder: swipe tables left and right”Product model
AFAT218
manufacturer
AOEMC
Product name
Custom 1dB-90dB Fixed Attenuator - 2 Watts Power
impedance
50 ohms
Input Average Power
2W @25℃
Input Peak Power
500W
connector
TNC
Test frequency range
DC-18GHz
Maximum VSWR
1.15~1.35
Operating Temperature Range
-55℃~125℃
size
16mm diameter*51mm length
weight
30 grams
Selection:
The AFAT218 is customizable and is available in your choice of the following configurations and models:
“Reminder: swipe tables left and right”Test Frequency
Selectable attenuation value size
DC-4 GHz
- 1dB ~9dB arbitrary value (1dB increment, accuracy ±0.3~0.8dB)
- 10dB~90dB arbitrary value (10dB increment, accuracy ±1~2.5dB)
DC-8 GHz
DC-12.4 GHz
DC-18 GHz
Selection example:
- For example, when selecting DC-4GHz, an attenuation value of 30dB is also required;
- Then the combination model is:AFAT218-4G-30dB；
Therefore, the selection formula is: AFAT218-4G(8G/12G/18G)-30 dB (1-90dB)
Once the test frequency and attenuation size have been selected, provide the above combination of models to EUTTEST for a quote.
