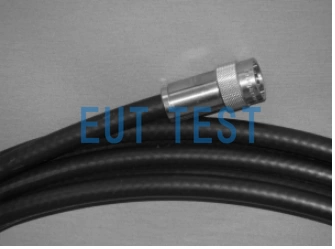

AK 9513 3GHz RF coaxial cable Length customizable

Introduction：

AK 9513 is a 3 GHz RF coaxial cable with 50 Ω impedance manufactured by Schwarzbeck, Germany and authorized to be distributed by EUTTEST, Shenzhen, with low losses in the frequency range up to 3 GHz, good flexibility and robust design, the inner conductor consists of stranded wires (7 x 0.75 mm), the inner conductor has a diameter of 2.25 mm, and the outer conductor consists of a copper mesh with low losses. The dielectric consists of polyethylene (PE).

Technical parameters：

Product Specification Sheet:

The above customizable parameters need to be determined at the time of order and contact us to start production.

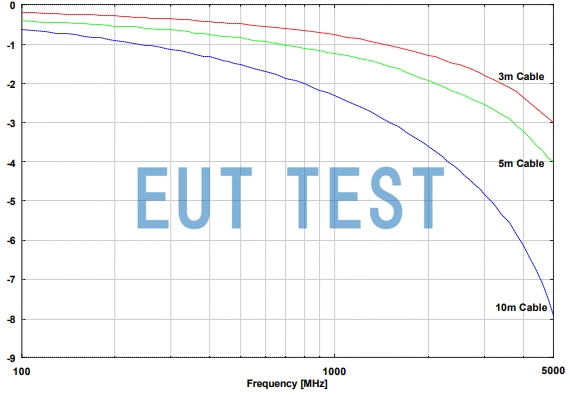

Decay graph with frequency

Coaxial cable shopping method:

Please start with one of the following coaxial cables in the frequency range you need to test:

Selecting the right modelAnd thenProvide cable length and connector type to EUTTEST. Get quotes and lead times from our sales staff.；

We only offer new imported coaxial cables, no used goods or defective products.

• AK 9513 3GHz RF coaxial cable
• AK 9515 G 6GHz RF Coaxial Cable
• AK 9515 E 10GHz RF Coaxial Cable
• AK 9515 H 18GHz RF coaxial cable
• AK 9540 B 40GHz RF coaxial cable
• MSS 9630 RF Coaxial Cable with Ferrite Choke
• Domestic 50Ω coaxial cable customization : short lead times and low prices
• RF Connector Selection
