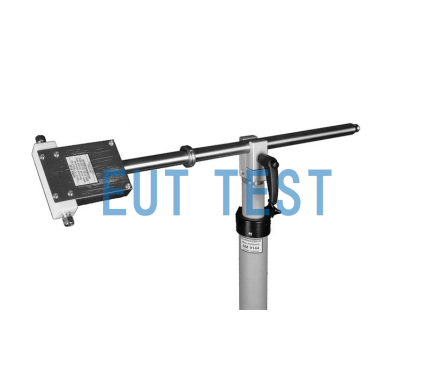

BBA 9106 + VHBA 9123 Biconical antenna for Schwarzbeck 100W

Introduction：

BBA 9106 + VHBA 9123 is a biconical antenna with 100W input power produced by Schwarzbeck, Germany, and authorized by EUTTEST Shenzhen for sales quotation and technical support services. This antenna consists of a biconical element BBA 9106 and Baron VHBA 9123, which can be used in the frequency range of 30MHz-300MHz, and can input 100W RF power in all frequency bands for immunity testing, and can also be used as a transmitting antenna for shielding effectiveness testing.

BBA 9106 and VHBA 9123 Technical Data:

Graph of related technical parameters：

Antenna Gain Test Data

Order No. EUTS0479

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
