BBAL 9136 + VHBD 9134 Schwarzbeck 2500W Biconical Antenna

Introduction：

BBAL 9136 + VHBD 9134 is a 2500W biconical antenna made of a biconical element and a balun, which is manufactured by schwarzbeck Germany and authorized to be sold by EUTTEST Shenzhen. The antenna can input up to 2500W RF power and generate up to 250V/m E-field strength at the front of the antenna. The generated E-field strength and the input RF power can be calculated from the factory data sheet.

BBAL 9136 and VHBD 9134 Technical Data:

Combination Antenna Model

bbal 9136 + vhbd 9134

Antenna name

Biconical antenna

manufacturer

Schwarzbeck

China Agent Sales

EUTTEST

Test frequency range

20MHz-200MHz

impedance

50Ω

Output Connector - Optional

N-head
maybe
7/16

Maximum input power

2500W

Recommended Test Applications

radiation immunity

Barron VHBD 9134 Antenna elements that can also be paired with the

BBAL 9136
BBFA 9146

Antenna width

1.98 m

weight

2.2 kg

Antenna Gain Range

-11dBi to 0dBi

Antenna Coefficient Range

6dB/m to 20dB/m

Optional Accessories

Gain coil: BCOI 9180

Booster coils used in conjunction with high power baluns (e.g. VHBD 9134-4 or VHBD 9134) and radiating elements (e.g. BBAL 9136 or BBAE 9179) produce the highest possible field strengths in the frequency range from 20 MHz to approximately 60 MHz.

Graph of related technical parameters：

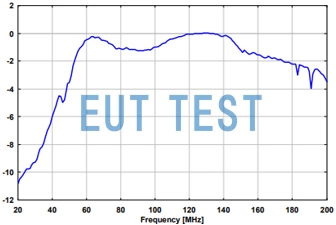

Biconical Antenna Gain Curve

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
