BBFA 9146 + VHBD 9134 Schwarzbeck 2kW Biconical Antenna

BBFA 9146 + VHBD 9134 Schwarzbeck
BBFA 9146 + VHBD 9134 Schwarzbeck Input power versus generated electric field strength for BBFA 9146 + VHBD 9134
Order Number: EUTS0503
Type: Biconical antenna
Brand: Schwarzbeck
Origin: Germany | Import

Min. order: 1 Unit
Stock:
schwarzbeck Real Time Inventory
Delivery: Click on the link above to inquire

Standards: Common Test Standards
Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Internet Banking T/T

Product Price:

Introduction：

BBFA 9146 + VHBD 9134 is a 2kW biconical antenna manufactured by Schwarzbeck, Germany, sold and quoted by Shenzhen EUTTEST, this antenna consists of a Barron VHBD 9134 and antenna elements. BBFA 9146 It consists of an antenna that can input up to 2000W of unmodulated RF power, so we recommend that you use this antenna to test radiated immunity.

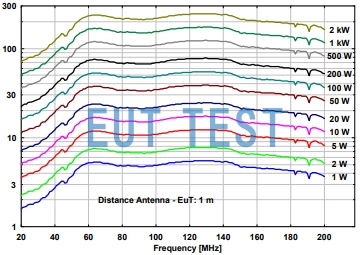

Input power versus generated electric field strength for BBFA 9146 + VHBD 9134

Plot of input power versus generated electric field strength

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”
Model number
bbfa 9146 + vhbd 9134
manufacturer
Schwarzbeck
Device name
Biconical antenna
China Agent Sales
EUTTEST
impedance
50Ω
radiance factor
4-18 dB/m
Test Frequency
20MHz-200MHz
Antenna Size
1.98 m * 0.66 m * 0.5 m
Maximum input power
2kW
Maximum generated electric field strength
1 V/m to 250 V/m
“Reminder: swipe tables left and right”



Order No. EUTS0503

Fill out the form to get a quote

Entered. 0/100

Contact EUTTEST Sales for a product quotation

Sales Hotline:13425158926

Sales mailbox：sales@euttest.com

Sales WeChat account: euttest

EUTTEST-inquiry-wechat Shenzhen EUTTEST Technology Co.

Contact Sales by WeChat

Sales QQ：3127609248

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

[821] DISCLAIMER: Reproduction and redistribution by anyone without written permission from EUTTEST is prohibited.

Product parameters are subject to the manufacturer's final version.
