BBV 9718 D Schwarzbeck 18GHz Broadband Preamplifier

Introduction：

The BBV 9718 D is a microwave band broadband preamplifier manufactured by Schwarzbeck, Germany and distributed by EUTTEST Shenzhen. The preamplifier is designed for radiometric emission RE testing in the frequency range 1 GHz-18 GHz in radio wave darkrooms to increase the sensitivity of field strength measurements and general attenuation measurements up to 18 GHz. Thanks to the built-in rechargeable battery, it can run for about 8 hours without power.

Installation Instructions:

The amplifier BBV 9718D has an SMA female connector on the input and is supplied with a 0.5 m long low loss coaxial microwave cable for linking to the antenna to be tested. The cable is supplied with a choice of N male and SMA male connectors.

As a rule, the amplifier should be mounted very close to the antenna and the amplifier housing is fitted with rubber pads for placing on a horizontal surface. In addition, the housing has a 22 mm hole for clamping the mounting tube of the Schwarzbeck antenna. The antenna mounting tube is usually mounted horizontally with the N female output of the amplifier facing the ground, which avoids the problem of accidental bending damage to the coaxial cable.

For practical testing the BBV 9718 D amplifier will be placed directly behind the antenna and EUTTEST can provide mounting brackets for the preamplifier and EMI antenna. A typical mounting example is shown below: Includes Log Periodic Antenna ESLP 9145 with Tripod Adapter AA 9202 and Tripod AM 9144 The

Installation Diagram with ESLP 9145 and AM9144

Technical parameters：

Product Specification Sheet:

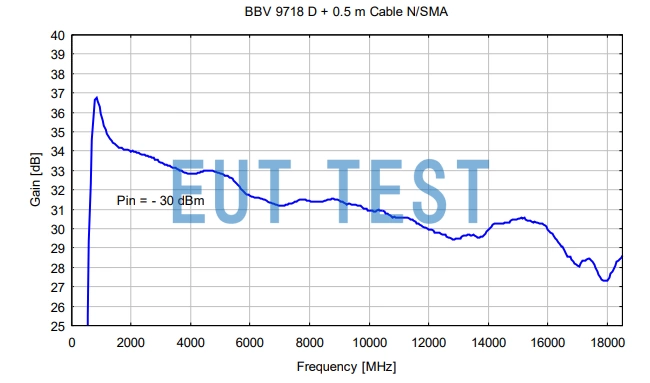

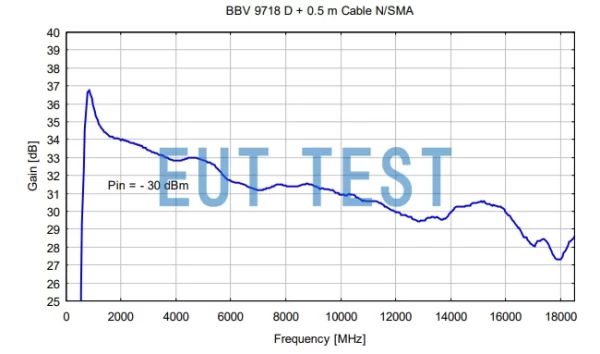

Gain Curve Diagram

Recommendations for products in the same sequence:

EUTTEST also offers more preamplifiers manufactured by Schwarzbeck, allowing you to select the amplifier model you need based on test frequency and gain.

• BBV 9718 C 0.5GHz-20GHz, 30dB gain Discontinued
• BBV 9719 12GHz-28GHz; gain 30dB
• BBV 9721 12GHz-40GHz; gain 30dB
• BBV 9743 B 10MHz-6GHz, 28dB gain
• BBV 9744 9kHz-6GHz with 28dB gain
• BBV 9745 9kHz-2GHz, 30dB gain
• BBV 9748 , 10MHz-8GHz , 29dB gain
