BNB 8653 Schwarzbeck 850A impedance network for automotive batteries

BNB 8653 Curves of Operating Temperature as a Function of Current and Time

Order Number: EUTS0555

Type: Car Battery Simulator

Brand: Schwarzbeck

Min. order: 1 Unit

Stock:

schwarzbeck Real Time Inventory

Delivery: Click on the link above to inquire

Standards:

ISO 21498,
MBN11123

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Introduction：

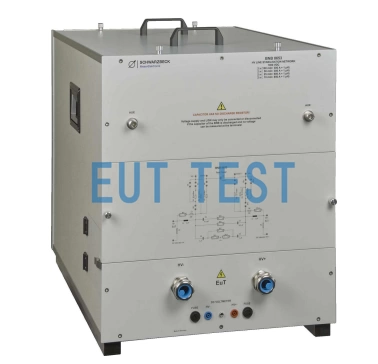

BNB 8653 is an 850A automotive battery impedance network simulator manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and quotation service. This battery simulator is designed to meet the requirements of the automotive electronics test standard ISO 21498-2:2021-03 and the manufacturer's MBN 11123:2021-08, and has four different built-in automotive battery internal resistance configurations for testers to choose from. The simulator has two power supply paths, HV+ and HV-, on the front and rear panels, which are isolated from the enclosure and have built-in inductors with no specific polarity.

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Model number

BNB 8653

Device name

850A Automotive Battery Impedance Network

manufacturer

Germany schwarzbeck

China Agent Sales

Shenzhen EUTTEST

Maximum DC voltage

1000V

Four types of battery internal resistance can be simulated

2 x 100mΩ series 1μH inductors
2 x 50mΩ series 1μH inductors
2 x 25mΩ series 1μH inductors
2 x 10mΩ series 1μH inductors

Maximum transient current

300A-850A (determined by selected battery internal resistance)

self-perception coefficient

0.5μH

LISN Inductors

2 x 1μH

weight

63 kg

size

446 mm * 535 mm * 770 mm

“Reminder: swipe tables left and right”

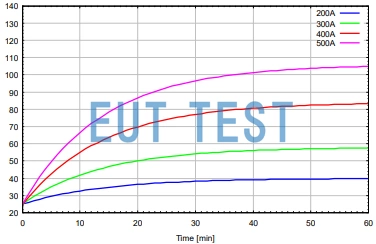

Operating temperature curve

The battery simulator will heat up and the temperature will rise when it is operating, so please control the operating time of the device according to the current and operating time curves in the following chart.

Curve of operating temperature as a function of current and time

More recommendations for battery simulators with different supply currents:

We offer a full line of automotive battery resistance simulators from Schwarzbeck. Please select the appropriate device based on the current in the list below, then click on the model number to see information about the simulated battery resistance and other technical parameters.

BNB 8651-40 , Battery internal resistance simulator continuous current: 40A; transient current: 45A-70A
BNB 8652 , Battery internal resistance simulator continuous current: 100A; transient current: 100A-200A
BNB 8654 , Battery internal resistance simulator continuous current: 500A; transient current: 550A-1600A
BNB 8655 , Battery internal resistance simulator continuous current: 800A
BNB 8656 , Battery internal resistance simulator continuous current: 800A; transient current: 900A-1600A

Order No. EUTS0555

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.
