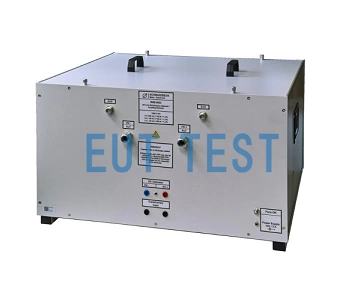

BNB 8652 Schwarzbeck 200A impedance network for automotive batteries

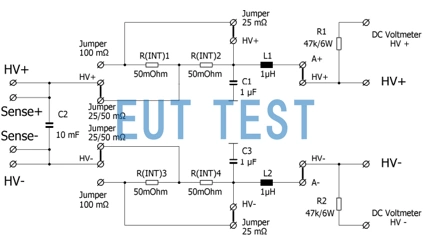

The BNB 8652 can simulate three types of battery internal resistance.

Order Number: EUTS0554

Type: Car Battery Simulator

Brand: Schwarzbeck

Min. order: 1 Unit

Stock:

schwarzbeck Real Time Inventory

Delivery: Click on the link above to inquire

Standards:

ISO 21498,
MBN11123

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Introduction：

BNB 8652 is a 200A automotive battery impedance network simulator produced by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and quotation service. This battery simulator is manufactured for the automotive electronics test standard MBN 11123. It has a symmetrical construction with two power supply paths: HV+ and HV-, both paths are isolated from the case and the built-in components have no specific polarity, especially the capacitors are foil capacitors with very low Equivalent Series Resistance (ESR).

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Model number

BNB 8652

Device name

200A Automotive Battery Impedance Network

manufacturer

Germany schwarzbeck

China Agent Sales

Shenzhen EUTTEST

Maximum DC voltage

1000V

Three types of battery internal resistance can be simulated

2 x 100mΩ series 10 mF capacitors
2 x 50mΩ series 10 mF capacitors
2 x 25mΩ series 10 mF capacitors

Maximum transient current

100A-200A (determined by selected battery internal resistance)

self-perception coefficient

0.5μH

LISN Inductors

2 x 1μH

Maximum operating current of the coupling transformer

80A

weight

80 kg

size

670 mm * 420 mm * 660 mm

“Reminder: swipe tables left and right”

Battery internal resistance selection:

Three types of battery internal resistance can be simulated

More recommendations for battery simulators with different supply currents:

We offer a full line of automotive battery resistance simulators from Schwarzbeck. Please select the appropriate device based on the current in the list below, then click on the model number to see information about the simulated battery resistance and other technical parameters.

BNB 8651-40 , Battery internal resistance simulator continuous current: 40A; transient current: 45A-70A
BNB 8653 , Battery internal resistance simulator continuous current: 300A; transient current: 300A-850A
BNB 8654 , Battery internal resistance simulator continuous current: 500A; transient current: 550A-1600A
BNB 8655 , Battery internal resistance simulator continuous current: 800A
BNB 8656 , Battery internal resistance simulator continuous current: 800A; transient current: 900A-1600A

Order No. EUTS0554

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.
