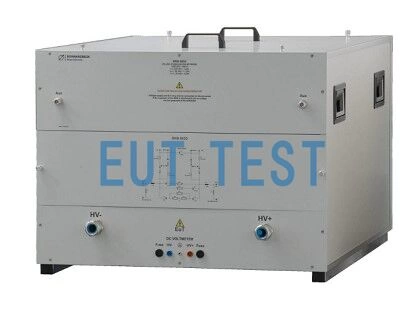

BNB 8655 Schwarzbeck 800A Automotive Battery Simulator

BNB 8655 Operating Temperature Curve with Time at 800A Current

Order Number: EUTS0557

Type: Car Battery Simulator

Brand: Schwarzbeck

Min. order: 1 Unit

Stock:

schwarzbeck Real Time Inventory

Delivery: Click on the link above to inquire

Standards:

MBN11123

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Introduction：

BNB 8655 is a constant current 800A automotive battery simulator manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and quotation service. This battery simulator is designed to meet the requirements of the automotive electronic test standard MBN 11123:2021-08, with three different built-in resistor + inductor impedance configurations for testers to choose from. The simulator has two power supply paths on the front and rear panels: HV+ and HV-, each with variable power resistors.

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Model number

BNB 8655

Device name

800A Car Battery Simulator

manufacturer

Germany schwarzbeck

China Agent Sales

Shenzhen EUTTEST

Maximum DC voltage

1000V

Three types of battery internal resistance can be simulated

2 x 50mΩ series 1μH inductors
2 x 25mΩ series 1μH inductors
2 x 100mΩ series 1μH inductors

Maximum continuous current

Constant value: 800A

self-perception coefficient

0.5μH

LISN Inductors

2 x 1μH

weight

123 kg

size

446 mm * 570 mm * 900 mm

“Reminder: swipe tables left and right”

Operating temperature curve

This battery simulator can work at a constant current of 800A, if you use it up to 1600A, the temperature of the device will rise sharply, so we only recommend you to use this battery simulator within the rated current of 800A, please control the running time of the device according to the current and working time curves in the following chart.

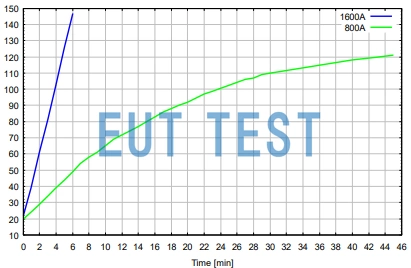

Curve of operating temperature with time at 800A current

More recommendations for battery simulators with different supply currents:

We offer a full line of automotive battery resistance simulators from Schwarzbeck. Please select the appropriate device based on the current in the list below, then click on the model number to see information about the simulated battery resistance and other technical parameters.

BNB 8651-40 , Battery internal resistance simulator continuous current: 40A; transient current: 45A-70A
BNB 8652 , Battery internal resistance simulator continuous current: 100A; transient current: 100A-200A
BNB 8653 , Battery internal resistance simulator continuous current: 300A; transient current: 300A-850A
BNB 8654 , Battery internal resistance simulator continuous current: 500A; transient current: 550A-1600A
BNB 8656 , Battery internal resistance simulator continuous current: 800A; transient current: 900A-1600A

Order No. EUTS0557
