CCC 9224 Schwarzbeck Capacitive coupling clamps according to ISO 7637-3

Product Description:

CCC 9224 is a capacitive coupling clip produced by Schwarzbeck in accordance with ISO 7637-3, Schwarzbeck authorizes the product to be sold by Shenzhen EUTTEST agent sales and after-sales service, the coupling clip CCC 9224 is designed in accordance with the ISO 7637-3 standard, the main application is the completion of the fast transient coupling on the wire harness of the vehicle components, but it can be used for many other coupling tasks, the coupling clip CCC is manufactured using the asymmetric 50 ohm transmission line principle, the conductor above the coupling clip can be opened into the EuT cable bundle under test. Can be used for many other coupling tasks, coupling clip CCC using the principle of asymmetric 50 ohm transmission line manufacturing, coupling clip above the conductor can be opened into the measured object EuT cable bundle, coupling clip on both sides are equipped with N-type connectors, very convenient for injecting transient pulse signals.

Capacitive coupling clips need to be matchedTransient Immunity GeneratorUsed together, Schwarzbeck is a globally recognized manufacturer of capacitive coupling clips.

The capacitive coupling clip CCC9224 has an impedance along the line in the range of 40-60 ohms and meets the requirements of the ISO 7637-3 standard.

Along the line impedance test chart

Technical parameters：

Product Specification Sheet:

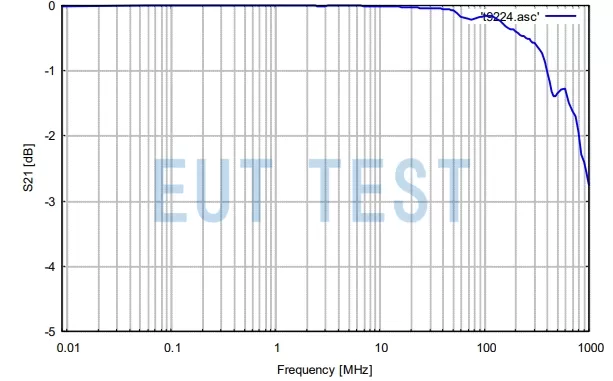

S21 test chart for schwarzbeck CCC 9224

Order No. EUTS0821
