CCP 9225 Schwarzbeck Capacitive Coupling Clip based on MBN 10284-2

Product Description:

CCP 9225 is a capacitive coupling clamp produced by Schwarzbeck, Germany, authorized by Shenzhen EUTTEST agent sales and after-sales service, 9225 according to automobile manufacturers standard MBN 10284-2 and ISO 7637-3 standard requirements, the main application is with the impedance converter.VHIC 9260Together with the CV test (capacitive voltage measurement), this product is constructed in accordance with Appendix B of the automobile manufacturer's standard MBN 10284-2 2011-04.

Product Benefits:

• Symmetric coupling, avoiding the difference between FEXT and NEXT effects, thus reducing the test time to 50%
• Improved reproducibility of coupling capacity through reliable conductor alignment
• Integration of shims into the coupling plate structure

CCP 9225 Structural design of coupling plate

The coupling plate is equipped with a female N-type connector in the center of the substrate and the distance between the coupling plate and ground is 15 mm. In combination with an impedance converter for high impedance inputs, the entire transducer is virtually constant over a wide frequency range. With a 50 Ω device connected directly to the capacitive coupling plate, the transmission rises at a rate of 20 dB per decade, the coupling plate is used as a capacitive voltage divider, and in combination with the VHIC 9260 impedance converter and the shunt capacitor at the high impedance input, the entire transducer can be varied over a wide range.

Technical parameters：

Product Specification Sheet:

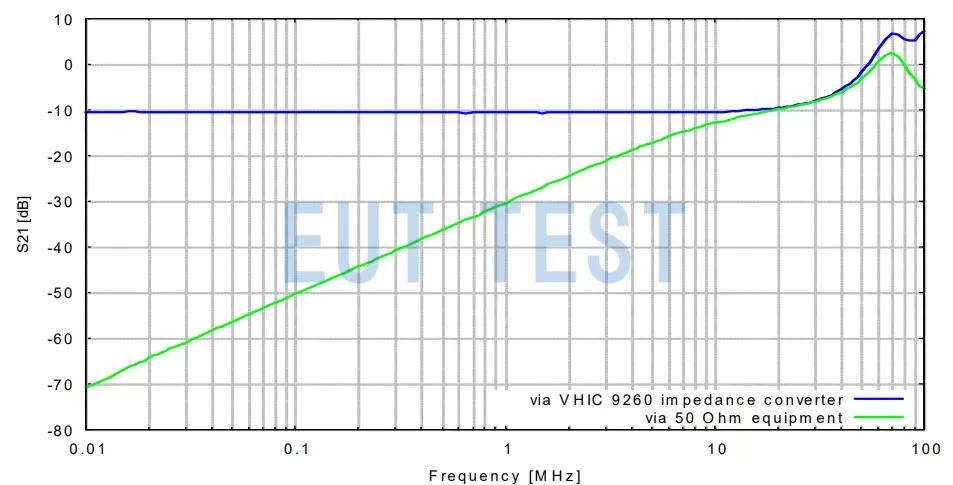

Difference in insertion loss between S21 with VHIC 9260 and without it

Order No. EUTS0822
