CCC01KIT01 york Cable Coupling Clip 10kHz-1GHz

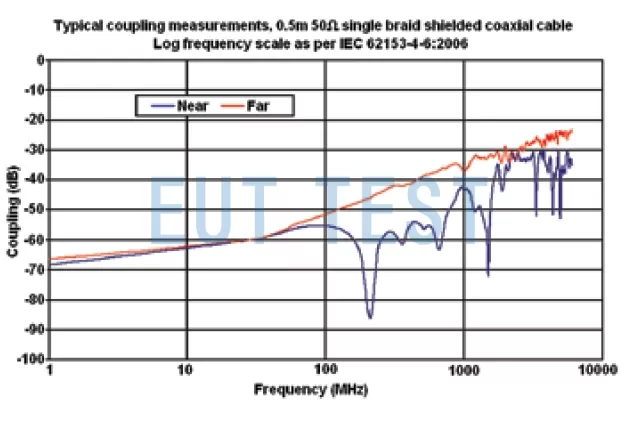

Coupling test for near-end and far-end shielding effectiveness of coaxial cables according to IEC 62153-4-6:2006

Order Number: EUTS0002

Test frequency: 10kHz - 1GHz

Type: Cable coupling clip

Brand: Eurofins Yorkemc

Min. order: 1 Unit

Stock: 0

Delivery: 13 weeks

Standards: Common Test Standards

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Introduction：

CCC01KIT01 is a Cable Coupling Clamp Combination Kit manufactured by York in the UK and distributed by EUTTEST in Shenzhen, China. The kit contains a Cable Coupling Clamp The CCC01 is a reusable test fixture that can be used to measure the shielding performance of cables. The CCC01 is designed to easily locate test and radiation feedthrough cables according to the layout described in IEC 96-1 Amendment 2 1993-06. This simplifies the process of making repeatable measurements and can be used to evaluate the coupling and shielding effectiveness characteristics of a wide range of cables by simply connecting to an external spectrum analyzer.

The CCC01 design is based on the details of the "starter" method described in IEC 96-1 Amendment 2 1993-06 Section A.5.6 Line injection method (frequency domain), which is also used in IEC 62153-4-6:2006 and is specified in the line injection method in EN 50289-1-6. Methods.

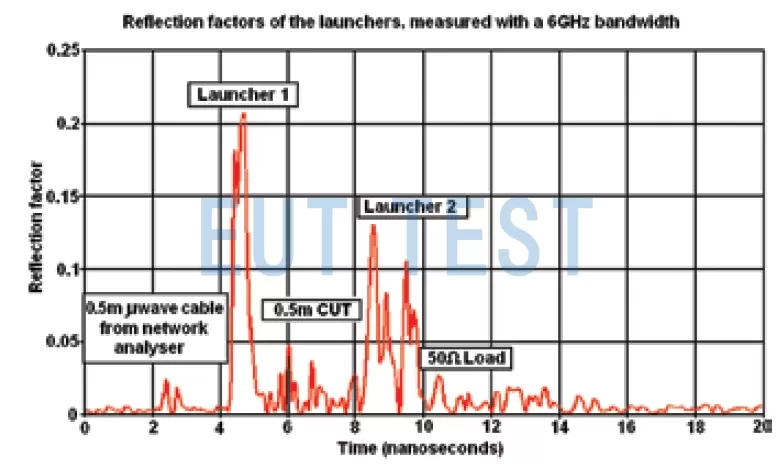

CCC01 Technical parameters:

“Reminder: swipe tables left and right”

Frequency range

10kHz-1GHz

output connector

50Ω N

York China Sales Agent

Euttest provides after-sales service

Measurable Cable Size

Use the three sets of accessories included for diameters from approximately 2.5 mm to 10 mm.
Available as an accessory as a user-processable accessory supporting a maximum cable size of 22 mm x 13 mm (rectangular cross-section) or 13 mm (diameter)

Measurable cable length

0.3m or 0.5m

size

220mm*880mm (0.5m test setup)
220mm*740mm (0.3m test setup)

Available Criteria

IEC 96-1 Amendment 2 1993-06
IEC 62153-4-6:2006
EN 50289-1-6

weight

3kg

List of standard equipment

- Pair of pre-assembled cable injection assemblies
- Base plate, mounting position for 0.3 m and 0.5 m cable test lengths
- 2.5 mm, 5 mm and 10 mm diameter cable mounting glands
- Additional Clip-on Ferrite Choke
- Self-adhesive copper tape (signal jet conductor)
- Hard cases for the injection of components and accessories
- manuals
We are unable to provide the cable under test (CUT), any components associated with its construction, and any ferrite rings to be installed.

option

CMF01: User machinable blank fitting kit for custom cable apertures (single cable)
Special: Information about our cable testing services to IEC 96-1 and EN 50289-1-6 using CCC01
