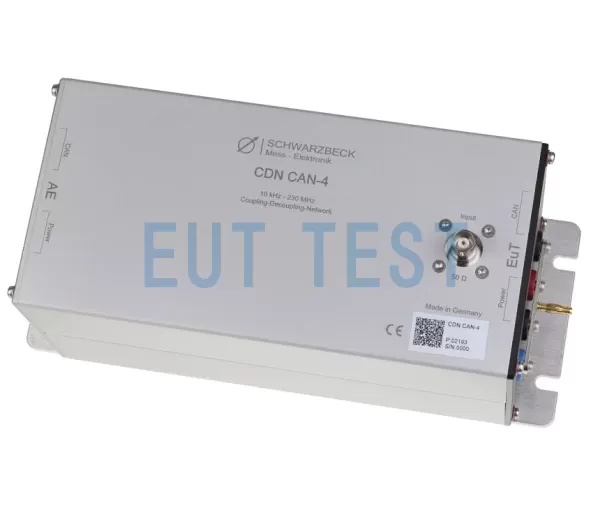

CDN CAN-4 schwarzbeck CAN line coupling decoupling network

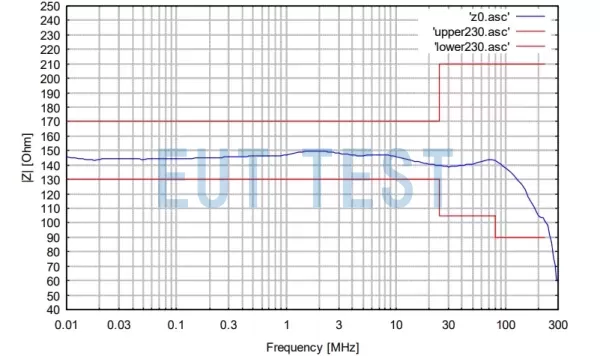

Common mode impedance of CDN CAN-4 factory calibration data plot

Order Number: EUTS0830

Type: CDN-AF Sequence-coupled decoupling network

Brand: Schwarzbeck

Min. order: 1 Unit

Stock:

schwarzbeck Real Time Inventory

Delivery: Click on the link above to inquire

Standards:

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Product Description:

The CDN CAN-4 is a CAN line coupling and decoupling network-CDN product from schwarzbeck, Germany, which meets the requirements of IEC 61000-4-6, IEC 61326-3-2 and NAMUR NE21 and is ideally suited for injecting common-mode interference signals into the coupling of the power and control lines of the Device Under Test (DuT) and for decoupling the AE terminals. In practice, the CAN transceiver's common-mode voltage range is limited due to the type of CAN signals that have a DC component on the signal and therefore no transformer can be used, which results in very poor immunity to interference due to the CAN transceiver's high input impedance when the CAN line is viewed in isolation. However, the immunity of the whole system is much better because the power line following the CAN line provides a low impedance path to ground. To reproduce this on the test bench, euttest will CDN T2(for data cables) and CDN AF2(for power lines) are combined into one device to couple all the lines, so the new CAN-4 is created. this CDN can also be used for other communication systems using unshielded cables and differential input amplifiers. if the power and signal lines of your product are to be wired separately, the two CDNs mentioned above must be used individually. the rf frequency response of this CDN is 10kHz to 230 MHz. The following figure shows a simplified circuit diagram of the CAN-4 type CDN.

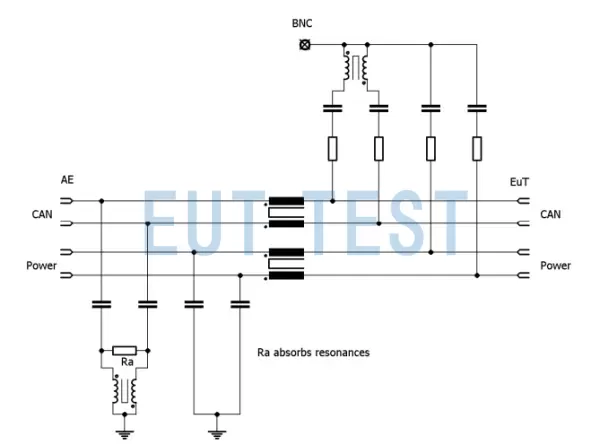

Circuit schematic of CDN CAN-4

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Model:

CDN CAN-4

Manufacturer:

Schwarzbeck

Agent seller:

EUTTEST

Common mode impedance:

150 ohms
frequency dependence

CDN Type:

CAN-4

Partial pressure coefficient:

10dB±3dB

Frequency range:

0.01 MHz - 230 MHz

EUT/AE interface:

4 conductors

EUT/AE connectors:

4 mm safety banana socket

Maximum current rating:

4 A

Maximum input voltage (AE):

150 V, DC
100 V, AC (at DC-100 Hz)
20 V, AC (at > 100 Hz)

Calibration adapter:

4-pin shorting bar CA 4/4 (2 pcs)

Size:

216 x 105 x 108 mm

Weight:

1.5 kg

“Reminder: swipe tables left and right”

The common mode impedance of the CAN-4 varies with frequency and has different accuracy for different frequency ranges:

10 kHz - 24 MHz: 150 Ω ±20 Ω
24 MHz-80 MHz: 150 Ω +60 Ω / -45 Ω
80 MHz - 230 MHz: 150 Ω ±60 Ω

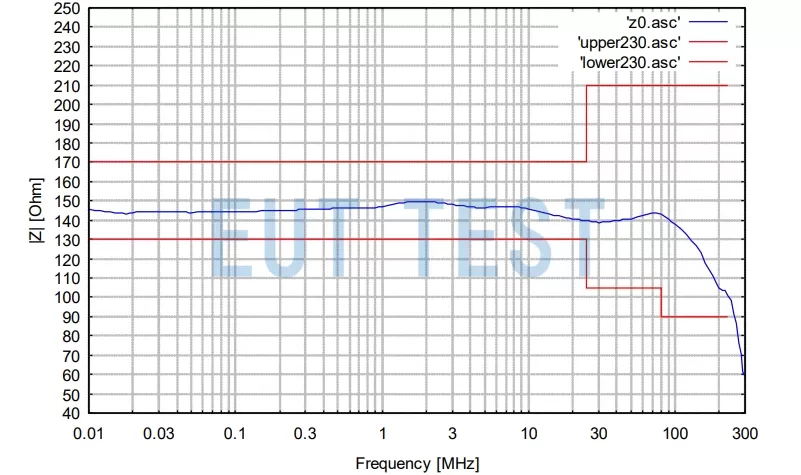

For reference, the following chart shows the original factory calibration data for common mode impedance from one of the customers to whom EUTTEST sold this product.
