3160 ETS-LINDGREN 40GHz Standard Gain Horn Antenna

Product Description:

3160 ETS is a 40GHz standard gain horn antenna serial product manufactured by ETS-LINDGREN, USA, authorized by Shenzhen EUTTEST agent sales and quotation service. 3160 serial products cover 01~10 different models of pyramid standard gain antennas, all models have line polarization, medium gain, the best half-power beamwidth (horizontal and vertical planes are equal) and low VSWR characteristics, antenna factor and gain stability, ETS 3160 is especially suitable for ANSI C63.4 recommended reference antennas. All models feature line polarization, medium gain, optimum half-power beamwidth (equal in both horizontal and vertical planes), and low VSWR. With antenna coefficients and gain stability within ±0.5dB, the ETS 3160 is particularly well suited for use as a reference antenna as recommended by ANSI C63.4.

3160 Available with ETS lindgren's Antenna Tripods4-TR Tripodor manual antenna lift tower 7-TR Tripod use.

Optional Models:

The ETS 3160 horn antenna is available in the following 12 different optional models, all of which are directional antennas, linearly polarized. Please select the appropriate product according to the test frequency and input power and other indicators.

Example of an antenna orientation diagram:

Below is an example of an antenna orientation diagram (E- and H-plane) for the 3160-01, if you need an antenna orientation diagram for other models, contact EUTTEST for more information.

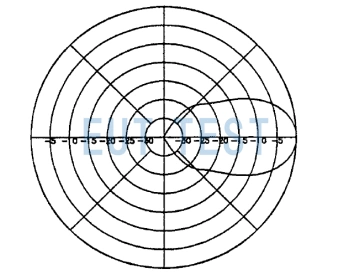

Antenna Orientation Diagram for ETS 3160-01 - H-Side

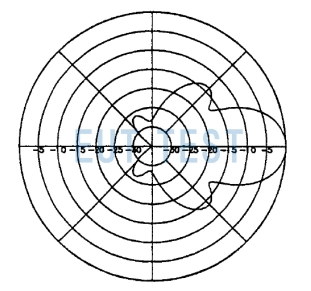

Antenna Orientation Diagram for ETS 3160-01 - Side E
