ETS 3303 ETS Lindgren 30MHz Monopole Antenna

Product Description:

The antenna model 3303 is a 30MHz monopole antenna manufactured by ETS Lindgren in the USA. It can be used to transmit electric fields from 1kHz-5MHz, 5MHz-30MHz with a maximum input of 1kW RF power, and of course, the ETS 3303 can be used to receive electric field signals from the EUT as well. 3303 antenna base is also equipped with a tripod attachment port. It can be mounted on an EUTTEST-specified antenna stand and is supplied with an antenna stand mounting adapter.

This product is authorized by EUTTEST Shenzhen to provide quotation and after-sales service nationwide.

ETS 3303 Product Parameters:

Test Application - Shielding Effectiveness Measurement:

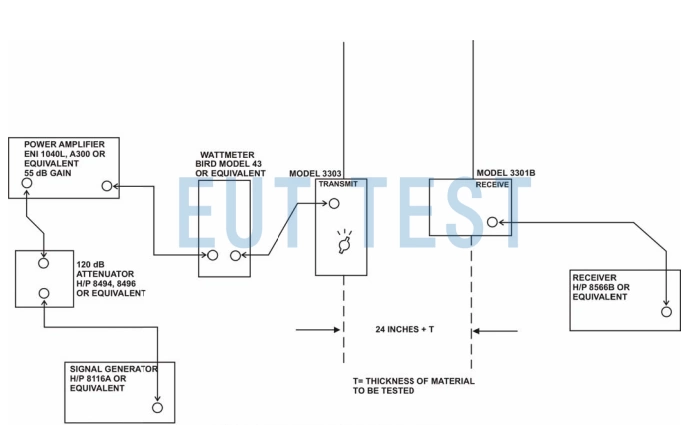

respond in singing6507as well as6509As with the antennas, the monopole antenna ETS 3303 is used in conjunction with the ETS 3301B (upgraded to 3301C) to complete the shielding performance test, as shown in the test configuration diagram below:

ETS 3303 and 3301C Monopole Antennas Available for Shielding Efficiency Testing

ETS-Lindgren 3305 Electric Field Shielding Effectiveness Test Kit includes two antennas, ETS 3303 and ETS 3301C. ETS 3305 can measure the shielding effectiveness of IEEE 299, MIL-STD-285 and NSA 65-6, and the test frequency covers 1 kHz to 30 MHz. The ETS 3305 can measure the shielding effectiveness of IEEE 299, MIL-STD-285 and NSA 65-6, with the test frequency covering 1 kHz to 30 MHz, and the maximum power required to measure the attenuation of NSA 65-6 is 80 watts.
