F-080728-1008-2 FCC Current Injection Probe Calibration Fixture

Product Description:

F-080728-1008-2 is produced by the U.S. FCC ( Fischer Custom Communications, Inc. ) company and authorized by the Shenzhen EUTTEST agent sales injection current probe calibration fixture. Test frequency: 500 MHz - 1 GHz, mainly used in electromagnetic compatibility (EMC) testing, most of the high-current injection test program specifications require that the injection probe calibration jig is part of the test equipment, use this calibration jig to quickly and easily calibrate the injection probe prior to performing the BCI injection test, but it should be noted that this product is only designed for However, it is important to note that this product is only designed for use with FCC's F-080728-1008-1 Current Injection Probe Calibration Test.

Product Benefits:

1. Due to variable circuit impedance or resonance in the cable, calibration fixtures are used to build positive power into the injection probe to produce a specified current in the system under test.

2. The fixture can be used to measure the insertion loss and VSWR of the injection probe.

Technical parameters：

Measurement calibration results:

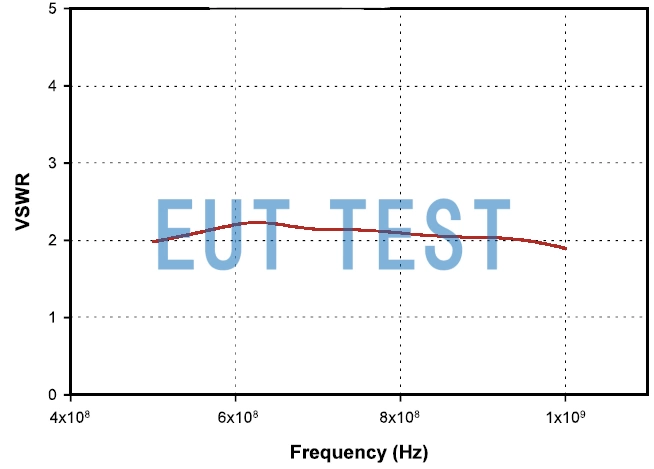

Voltage standing wave ratio VSWR

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
