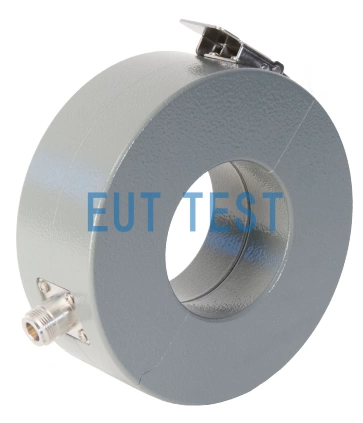

F-080728-1008-1 FCC Wide Bore HF BCI Probe

Product Description:

F-080728-1008-1 YesU.S. FCCMass production of wide-bore high-frequency BCI probe, the working frequency band covers 500MHz to 1GHz, support up to 500W continuous power output, built-in 65mm large inner diameter suitable for multi-harness bundle test, 500MHz-800MHz insertion loss <7dB, to enhance the efficiency of batch testing, the main vehicle harness group immunity test, in line with the SAE automotive industry standards for EMC test requirements. The product has been authorized EUTTEST company as the authorized agent in China.

Standard caliber models available in the same frequency band F-070601-1008-1 Probes with consistent power are more suitable for routine testing of single wire harnesses.

Technical parameters：

Product Specification Sheet:

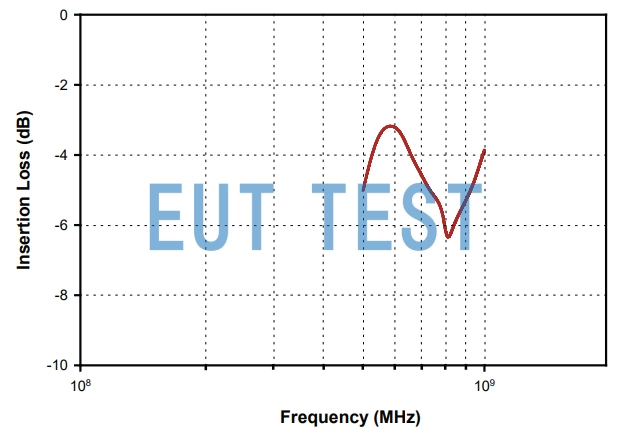

Insertion loss graph:

Insertion Loss Graph

FCC Manufacturer's Statement: Product specifications are subject to change without notice.

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
