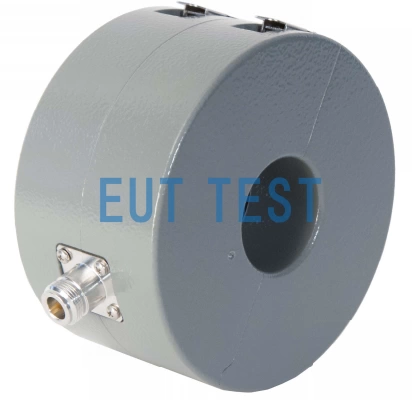

F-120-5 | FCC | 10kHz-100MHz | BCI High Current Injection Probe

Product Description:

The F-120-5 is a BCI high current injection probe manufactured by FCC Fischer Custom Communications, Inc. and authorized by EUTTEST Shenzhen. This injection probe is generally used for ISO11452-4 BCI testing, as well as for testing items required by GJB 151B-2013, MIL_STD_461, CS114, DO160 section20, etc. This probe is designed to extend the range of conducted immunity tests over a 10 kHz-100 MHz bandwidth. CS114, DO160 section20, etc. This probe is designed to expand the range of conducted immunity testing in the 10 kHz-100 MHz bandwidth, it has a high injection efficiency and is mainly used for low-frequency conducted sensitivity injection probe testing.

This probe can only measure up to 100MHz, if this is not the case, it is available as an option. F-120-6A  (400MHz current injection probe).

Technical parameters：

Product Specification Sheet:

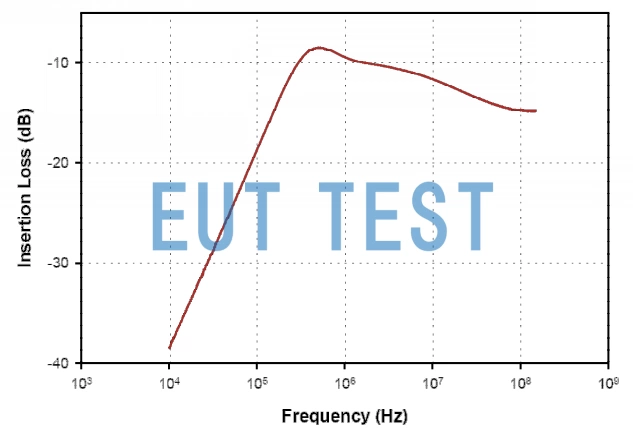

Insertion loss graph:

Insertion Loss Curve

Product specifications are subject to change without notice.

Order No. EUTS0108

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
