F-140 FCC Current Injection Probe 10kHz - 1GHz

Product Description:

F-140 is a 1GHz high current injection probe produced by FCC and authorized by Shenzhen EUTTEST for sale. This injection probe is generally used for BCI open and closed loop testing according to ISO11452-4, and it also complies with SAE J15447. The frequency range of this probe is between 10kHz-1000MHz, and insertion loss is less than 7dB at 700kHz-500MHz, and input power is up to 100W (less than a minute). The probe can be used in the frequency range of 10kHz-1000MHz, with an insertion loss of less than 7dB at 700kHz-500MHz and an input power of up to 100W (less than 30 minutes).

If a continuous RF power input of 100W is required, you can choose the HV version of the F-140-HV, but the HV version should be tested at less than 400MHz.

Technical parameters：

Product Specification Sheet:

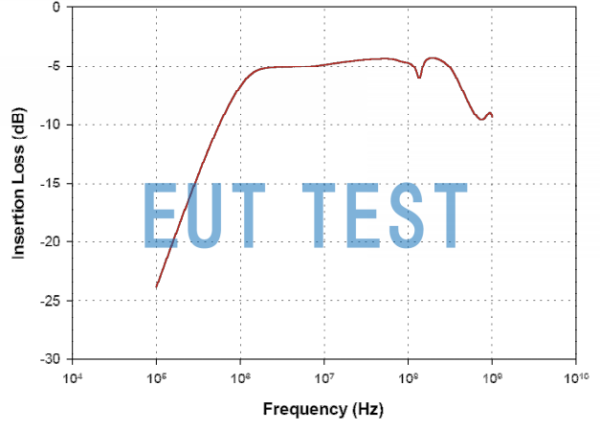

Insertion loss graph:

Insertion Loss Graph

Product specifications are subject to change without notice.

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
