F-210930-1005-1 FCC Dual Configuration Current Probe

Product Description:

F-210930-1005-1 is a dual-configuration current probe manufactured by FCC. As the name implies, this probe supports two different configurations (#1 or #2), both of which support conducted interference measurements up to 250MHz, making it ideal for troubleshooting low-frequency interference in your product installation.common-mode interferencerespond in singingdifferential mode interferenceof the problem. This product is sold and quoted service by Shenzhen EUTTEST agent, please refer to the following technical parameters, select the configuration information you need to order the product, if you have questions about the configuration, you can also contact us directly for help.

Technical parameters：

Product Specification Sheet:

As mentioned above, you can choose to configure the #1 or #2 with different current probes according to your peak pulse current measurement needs, and you can also refer to the transmission impedance data curves of the two different configurations below to make your selection.

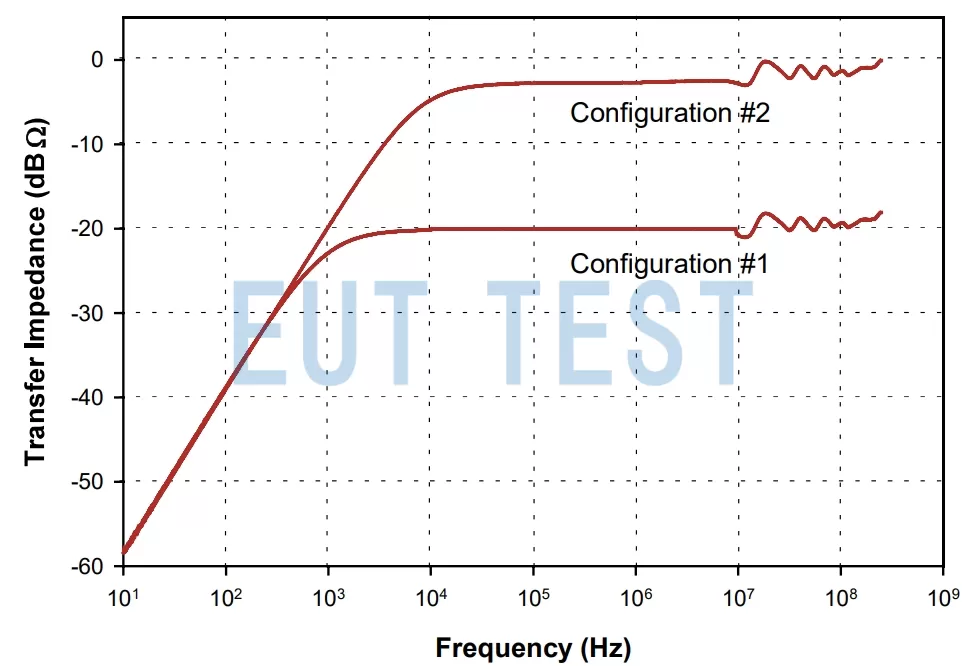

FCC F-210930-1005-1 Data Chart for Two Configurations with Different Transmission Impedances

If you need to measure more frequencies, e.g. up to 400 MHz, you can refer to the options:FCC F-220815-1005-1 Current Probe

Order No. EUTS0809

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
