F-220815-1005-1 FCC 1200A Current Probe

Product Description:

The F-220815-1005-1 is a dual-configuration current probe manufactured by the FCC, and the FCC F-210930-1005-1 Current ProbeLikewise, the 220815 probe supports the optional #1 or #2 configurations and has a higher measurement frequency of 400MHz than the 210930, but both configurations also fall short of the available current, so the specific choice of which product should be based on the test frequency range and maximum current.

This product by the Shenzhen EUTTEST agent sales and quotation service, please refer to the following technical parameters, select the configuration information you need to order products, if you have questions about the configuration, you can also contact us directly to get help.

Technical parameters：

Product Specification Sheet:

As mentioned above, you can choose to configure the #1 or #2 with different current probes according to your peak pulse current measurement needs, and you can also refer to the transmission impedance data curves of the two different configurations below to make your selection.

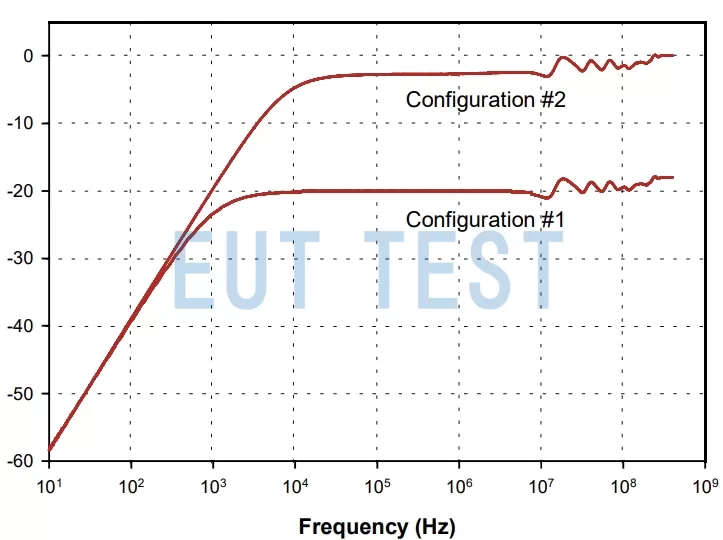

FCC F-220815-1005-1 Transfer Impedance

Order No. EUTS0810

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
