F-220422-1008-2 FCC Current Probe 10kHz-10MHz

F-220422-1008-2 FCC Current Probe 10kHz-10MHz
F-220422-1008-2 FCC Current Probe 10kHz-10MHz Insertion Loss Chart for F-220422-1008-2
Order Number: EUTS0775
Type: Current Injection Probes
Brand: FCC

Min. order: 1 Unit
Stock: 0
Delivery: 9 weeks

Standards: Common Test Standards
Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Internet Banking T/T

Product Price:

Product Description:

The F-220422-1008-2 is an FCC-manufactured current probe that you can use for current injection testing in the 10kHz-10MHz frequency range to meet your testing needs for applying conducted common-mode current disturbances to your products.

Required for injection with FCC current probes withRF Signal GeneratorFor more information about EUTTEST, please contact EUTTEST.BCI Test SystemPrograms.

Product Specifications:

“Reminder: swipe tables left and right”
Injection Probe Model
F-220422-1008-2
manufacturer
Fischer Custom Communications, Inc.
China Guangdong China Agent Sales
EUTTEST
frequency of use
10kHz-10MHz
insertion loss
-40dB~5dB (varies with frequency)
Coupling window size
101 mm * 111 mm
size
230mm*230mm*230mm
Maximum current
1000A
Recommended Calibration Fixture
F-161012-1008-3
“Reminder: swipe tables left and right”

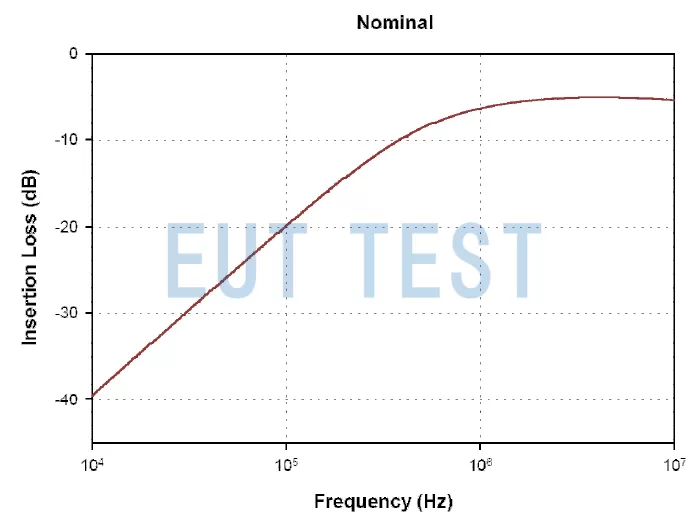

Insertion Loss Chart for F-220422-1008-2

Insertion Loss Chart for F-220422-1008-2



Order No. EUTS0775

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.

FCC Official Authorized Dealer:

EUTTEST is an official FCC authorized dealer, and the full official name of the company is: Fischer Custom Communications, Inc.

Ltd. is authorized by FCC to sell all FCC products in China and provide technical service for the products sold.
