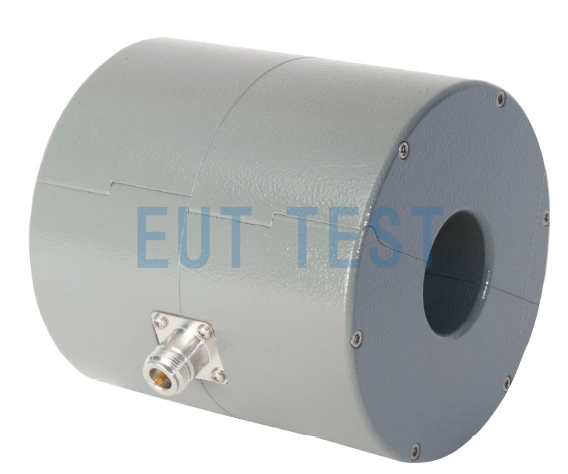

F-220609-1008-1 FCC ISO11452-4 High Current Injection Probes

Product Description:

F-220609-1008-1 is an ISO11452-4 high current injection probe manufactured by the U.S. FCC. In the 400MHz frequency range, you can put it on the BCI test bench to directly inject high frequency current disturbances up to 300mA~600mA into the interconnecting cables of automotive components.

In addition, we can also use this probe for CS-conducted immunity testing of civilian electronics, although BCI is also a conducted immunity, but BCI is specifically for automotive electronics testing, so the two tests will use different test methods and test accessories, which is easy for EUTTEST, we can build different EMC test setups according to your different test applications. We can set up different EMC test setups for different test applications.

Differences from F-201014-1008-1:

This probe is compatible with theF-201014-1008-1 The parameters of the current product are similar, but their biggest difference is that the insertion loss of the current product is only 5dB, which means that you only need a smaller amplifier input to achieve the same current injection test, and the size of the current product is much larger than the 201014, which effectively reduces the problem of probe heating.

Combining the above advantages, so the price of the current product will be much higher than F-201014-1008-1, but if the budget is limited, you can also choose 201014 probe, I hope to help you in the selection of equipment.

Product Parameters:

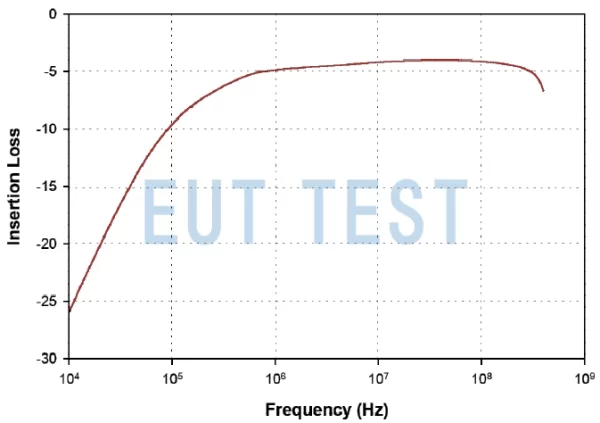

Figure 1: Insertion Loss Curve for FCC F-220609-1008-1

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
