FCC-BCICF-4-HV FCC Current Injection Probe Calibration Fixture

Introduction：

FCC-BCICF-4-HV is an injected current probe calibration fixture produced by FCC Fischer Custom Communications, Inc. and authorized for sale by EUTTEST Shenzhen. Test frequency: 10 kHz - 400 MHz, suitable for FCC F-120-8-HV calibration test metrology use.

Most high current injection test program specifications require that an injection probe calibration fixture be part of the test equipment. This test fixture, FCC-BCICF-4-HV, allows the user to quickly and easily calibrate the injection probe prior to performing conformance testing. Contact us for current probe calibration instructions after purchasing this calibration fixture from EUTTEST.

The FCC-BCICF-4-HV Calibration Fixture offers two important advantages:

1. Due to variable circuit impedance or resonance in the cable, calibration fixtures are used to build positive power into the injection probe to produce a specified current in the system under test.

2. The fixture can be used to measure the insertion loss of the injection probe.

Technical specifications of FCC-BCICF-4-HV:

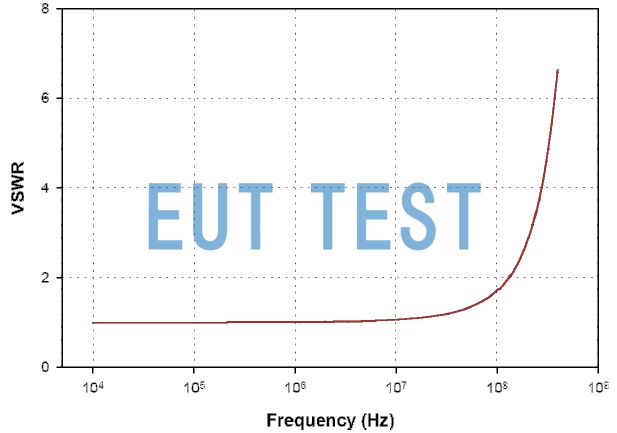

VSWR for FCC-BCICF-4-HV

Order No. EUTS0144

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
