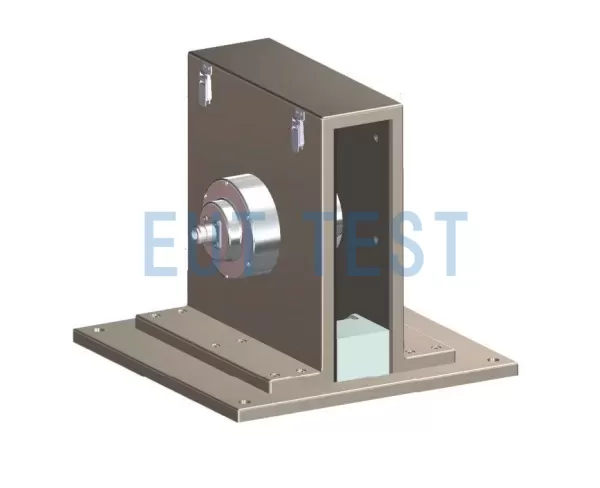

FCC-MPCF-1-127/197/41 197mm Current Probe Calibration Fixture

Product Description:

FCC-MPCF-1-127/197/41 is a current probe calibration fixture with an internal height of 197 mm produced by FCC, which is authorized to be sold and quoted by EUTTEST Shenzhen. The fixture is suitable for Fischer Custom Communications' current probe calibration test, but the inner diameter of the current probe needs to be greater than 127mm, the outer diameter needs to be less than 197mm, and the thickness needs to be less than 41mm, so that the current probe can be placed inside the fixture for installation and metrology test.

Available current probe products:

We recommend that you use this calibration fixture with the following FCC current probe models, and we will provide you with instructions for maneuvering the fixture in Chinese when you contact EUTTEST to purchase the product.

• F-180907-1005-1
• F-180907-1005-2
• F-180907-1005-3

Technical parameters：

Product Specification Sheet:

Calibration fixture need to pay attention to the Voltage Standing Wave Ratio (VSWR) parameter, we provide this FCC calibration fixture VSWR varies with frequency, so you need to get the detailed data from the chart below, we will also provide the factory calibration test report of the product you purchased in the factory data, which will list the VSWR test chart.

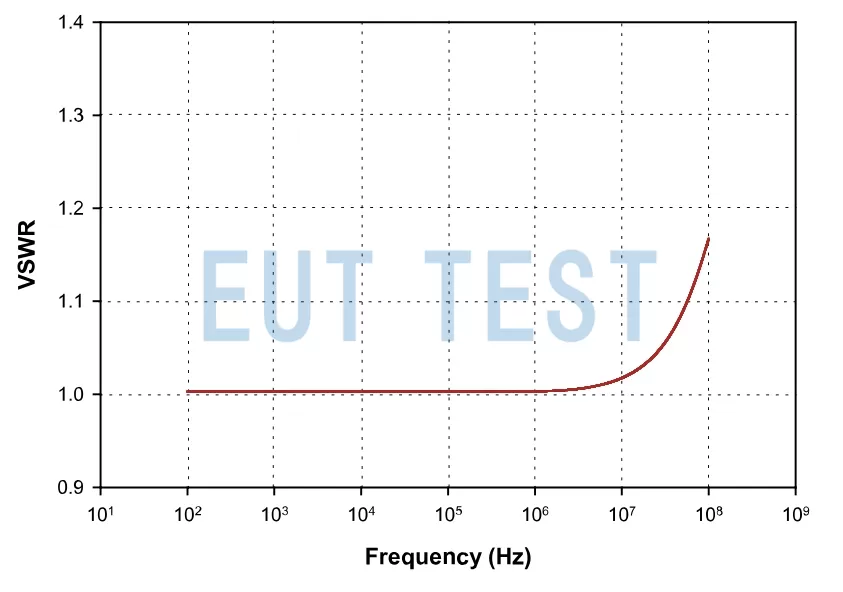

Calibration Fixture VSWR Test Chart

Order No. EUTS0836

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
